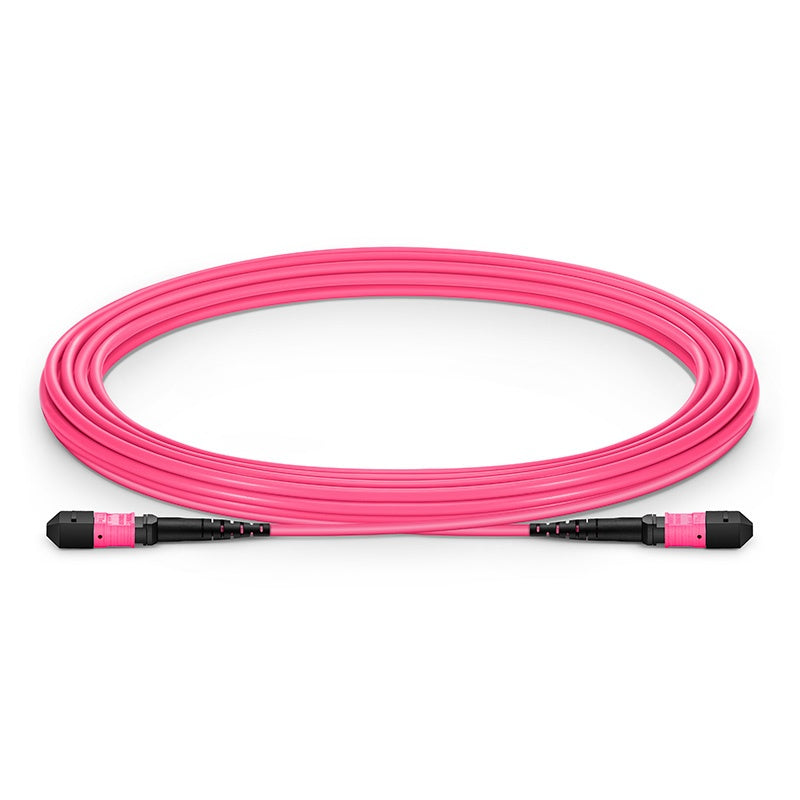

MPO-8 Fiber Optic Patch Cord, Female, Elite 8F OM4 Aqua/Violet LSZH 3.0mm Jacket, Corning Fiber
MPO-8 Fiber Optic Patch Cord, Female, Elite 8F OM4 Aqua/Violet LSZH 3.0mm Jacket, Corning Fiber
Artikelnummer: TP-MMC-209
Geringer Lagerbestand: 5 übrig
Verfügbarkeit für Abholungen konnte nicht geladen werden
Beschreibung
Beschreibung
Optical Parameters
Insertion Loss (dB)
- SM Elite ≤0.35
- MM Standard ≤0.7
- MM Elite ≤0.35
Return Loss (dB)
- SM Standard ≥60
- MM Standard ≥20
Durability (dB) ≤0.2 500 times mating
Tensile Strength (kgf) 10
Working Temperature (℃) －20 ~ +70
Measurement Wavelength (nm)
- SM Standard 1310
- MM Standard 850
Geometry Parameters
Radius of Curvature (mm)
- X-axis Min 500
- X-axis Max –
- Y-axis Min 50
- Y-axis Max -
Polishing Angle
- X-axis Min 0-0.2
- X-axis Max 0+0.2
- Y-axis Min 8-0.2
- Y-axis Max 8+0.2
Fiber Height (nm)
- X-axis 1000
- Y-axis 3000
Max Fiber Height Error (nm) 600
Adjacent Fiber Height Error (nm)
- X-axis -300
- Y-axis +300
Avg. Fiber Height Error (nm)
- X-axis -300
- Y-axis +300
-
Central Concave (nm) 300
