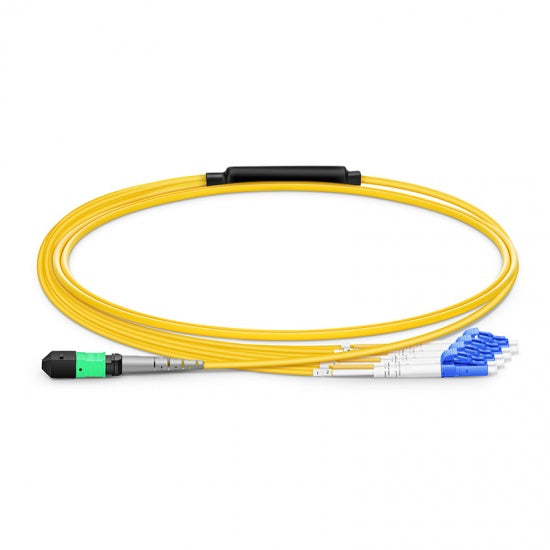

MTP-8 - 8x LC (4x duplex LC) Fiber Optic Patch Cord, Female, Elite 8F OS2 LSZH 3.0mm Jacket, Corning Fiber
MTP-8 - 8x LC (4x duplex LC) Fiber Optic Patch Cord, Female, Elite 8F OS2 LSZH 3.0mm Jacket, Corning Fiber
Artikelnummer: TP-MMC-91
100 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
Beschreibung
Beschreibung
Optical Parameters
Insertion Loss (dB)
- SM Elite ≤0.35
- MM Standard ≤0.7
- MM Elite ≤0.35
Return Loss (dB)
- SM Standard ≥60
- MM Standard ≥20
Durability (dB) ≤0.2 500 times mating
Tensile Strength (kgf) 10
Working Temperature (℃) －20 ~ +70
Measurement Wavelength (nm)
- SM Standard 1310
- MM Standard 850
Geometry Parameters
Radius of Curvature (mm)
- X-axis Min 500
- X-axis Max –
- Y-axis Min 50
- Y-axis Max -
Polishing Angle
- X-axis Min 0-0.2
- X-axis Max 0+0.2
- Y-axis Min 8-0.2
- Y-axis Max 8+0.2
Fiber Height (nm)
- X-axis 1000
- Y-axis 3000
Max Fiber Height Error (nm) 600
Adjacent Fiber Height Error (nm)
- X-axis -300
- Y-axis +300
Avg. Fiber Height Error (nm)
- X-axis -300
- Y-axis +300
-
Central Concave (nm) 300
LC Fiber Connector
Fiber Mode
Connector Polishing
- Single Mode PC
- Single Mode APC
- Multimode PC
Insertion Loss(dB) ≤0.3
Return Loss (dB)
- Single Mode PC ≥50
- Single Mode APC ≥60
- Multimode PC ≥35
Repeatability (dB) ≤0.2 1000 times mating
Working Temperature (℃) －40 ~ +85
Measurement Wavelengths (nm)
- Single Mode 1310
- Multimode 850
