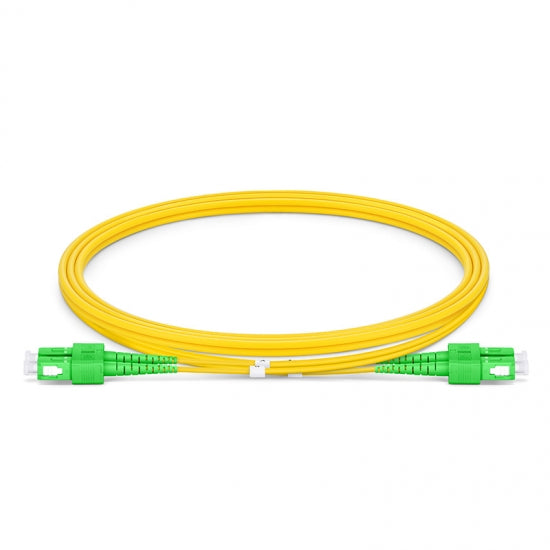

SC APC to SC APC Duplex OS2 Single Mode (LSZH) 2.0mm Fiber Optic Patch Cable
SC APC to SC APC Duplex OS2 Single Mode (LSZH) 2.0mm Fiber Optic Patch Cable
SKU: TP-FPH-38
50 in voorraad
Verkocht: 0Couldn't load pickup availability
Connector Type SC APC to SC APC
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Insertion Loss ≤0.3dB
Return Loss ≥60dB
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static)
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex
Cable Diameter 2.0mm
Cable Jacket (LSZH)
Polarity A (Tx) to B (Rx)
Operating Temperature -20~70°C
Storage Temperature -40~80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
