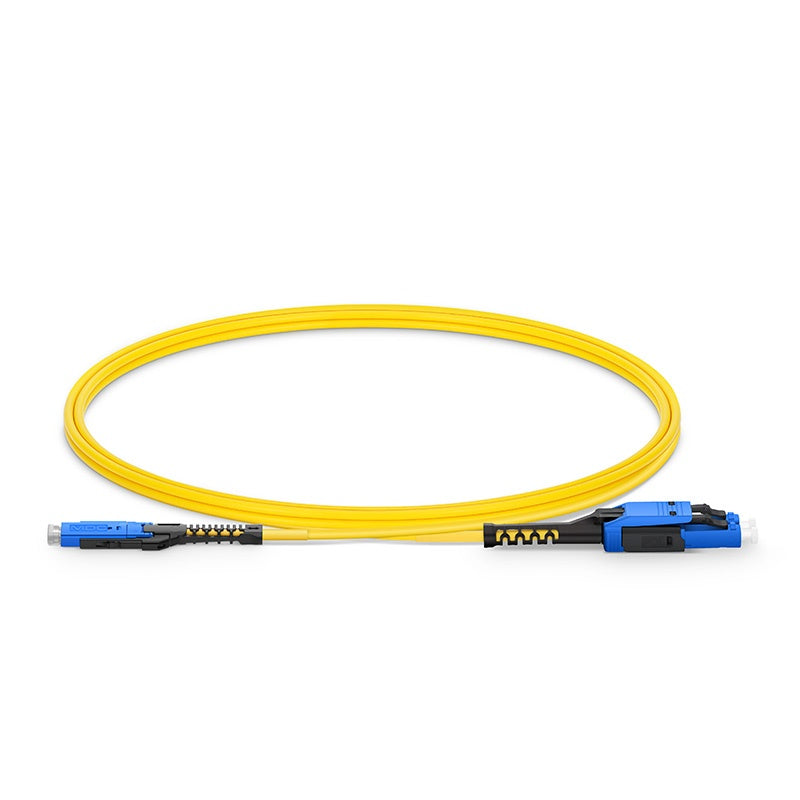

MDC UPC to LC UPC Uniboot Duplex OS2 Single Mode (LSZH) 2.0mm Fiber Optic Patch Cable, for 200/400G Network Connection
MDC UPC to LC UPC Uniboot Duplex OS2 Single Mode (LSZH) 2.0mm Fiber Optic Patch Cable, for 200/400G Network Connection
SKU: TP-FPH-459
50 in voorraad
Verkocht: 0Couldn't load pickup availability
Connector Type MDC to LC
Polish Type UPC to UPC
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Attenuation at 1310nm ≤0.4dB/KM
Attenuation at 1550nm ≤0.3dB/KM
Fiber Grade Corning G.657.A1 Fiber
Cable Jacket (LSZH)
Fiber Count Duplex
Cable Diameter 2.0mm
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10D /5D (Dynamic/Static)
Tensile Strength (Long Term/Short Term) 60N/100N
Polarity A (Tx) to B (Rx)
Operating Temperature -10~60°C
Storage Temperature -20~70°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
