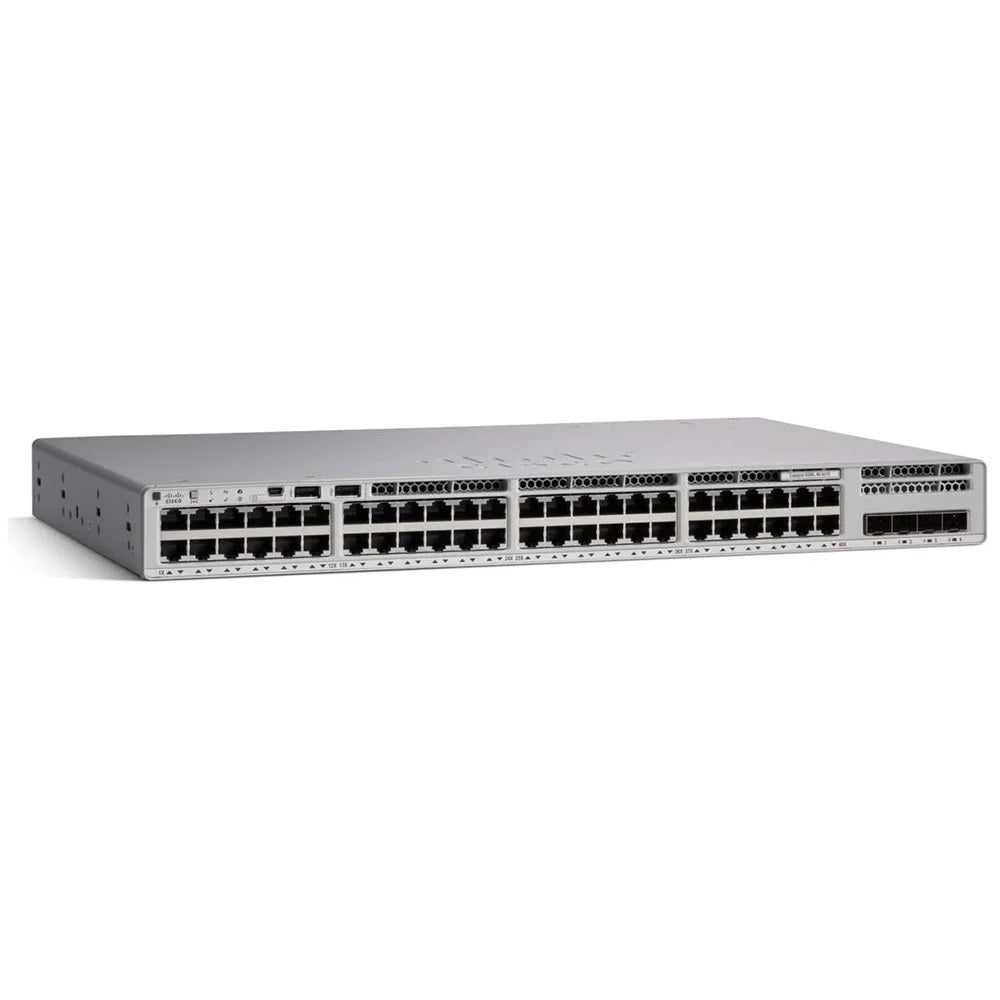

Cisco-Switches-C9200L-48P-4X-E
Cisco-Switches-C9200L-48P-4X-E
SKU: TP-NWK-14
Geen voorraad meer
Verkocht: 0Couldn't load pickup availability
Performance: Multiple bandwidth: 80 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
Routing Protocol: OSPF, RIP, VRRP, Policy Based Routing (PBR), MSTP
RAM: 2GB
Jumbo Frame Support: 9198 bytes
Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Compliant standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
Subtype: Gigabit Ethernet
Features: EIGRP Stub Routing, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP )--support, MACsec support, 6Mb packet buffer
Construction: original
Built-in Devices: RFID tag
Enclosure Type: Rack mountable
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Power Over Ethernet (PoE): PoE+
Capacity: Virtual networks: 1 ¦ MAC address: 16000 ¦ IPv4 routes: 11000 ¦ IPv4 entries in routing table: 3000 ¦ IPv6 entries in routing table: 1500 ¦ Multicast scales: 1000 ¦ ACL relay entries: 1500 ¦ FNF entries: 16000 ¦ Switched virtual interfaces (SVIs)
Flash memory: 4GB
Device Type: Switch - 48 ports - L3 - managed
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
