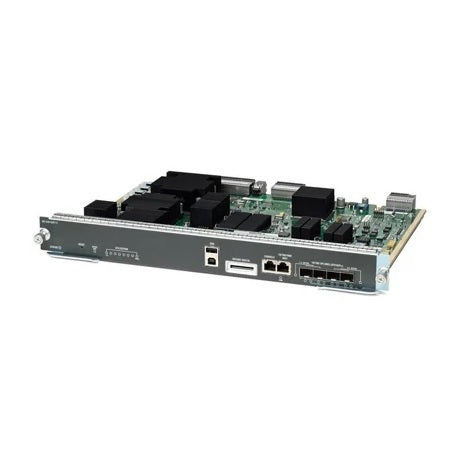

Cisco-Modules-WS-X45-SUP7-E
Cisco-Modules-WS-X45-SUP7-E
Référence : TP-NWK-30
En rupture de stock
Impossible de charger la disponibilité du service de retrait
Description
Description
Performance: Switching capacity: 848 Gbps ¦ Switching per slot: 48 Gbps ¦ IPv6 routing: 125 Mbps ¦ IPv4 routing: 250 Mbps
Routing Protocol: PIM-SM, PIM-DM, PIM-SSM
RAM: 2GB (4GB max) SDRAM
Supported Flash Memory Cards: SD memory card
Form Factor: Plug-in module
Compliant Standards: NEBS Level 3, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZ 3548 Class B, AS/NZS 3260, ICES-003 Class A, FCC Part 15 A, EN 55022 Class A
Compatible Slots: 1 x expansion slot
Processors installed: 1.5 GHz
Features: Uplink, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping
Construction: original
Connectivity Technology: Wired
Interfaces: 1 x administration - RJ-45 ¦ 1 x 1000Base-T (administration) - RJ-45 ¦ 1 x USB - Type A
Expansion Slots: 4 (total)/ 4 (free) x SFP+
Capacity: QoS Hardware Entries: 128000 ¦ Security Service Entries: 128000 ¦ Virtual Interfaces (VLANs): 4096 ¦ Multicast Entries (IPv4): 70000 ¦ Multicast Entries (IPv6): 64000 ¦ Multicast Entries (between IPv4 and IPv6): 16000 ¦ MAC address: 55000 ¦ IP
Device Type: Control Processor
