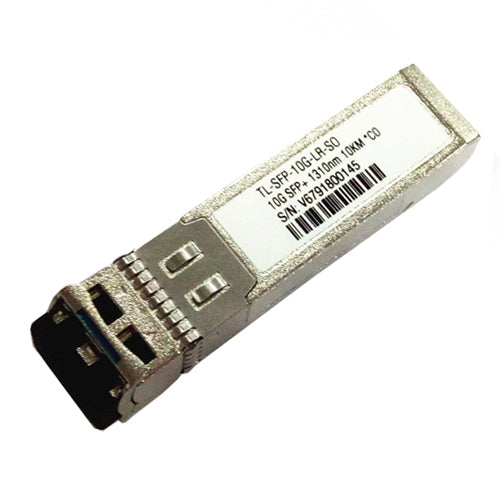

Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module Cisco

This 1310nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length of 10KM. The 10KM SFP+ module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.

• Optical interface compliant to IEEE 802.3ae 10GBASE-LR
• Electrical interface compliant to SFF-8431
• Hot Pluggable
• Supports rate up to 10.3Gb/s
• 1G/2G/4G/8G/10G Fiber Channel applications
• 1310nm DFB transmitter, PIN photo-detector
• Low power consumption
• Applicable for 10km SMF connection
• All-metal housing for superior EMI performance
• Advanced firmware allow customer system encryption information to be stored in transceiver
• Cost effective SFP+ solution, enables higher port densities and greater bandwidth
• RoHS compliant (lead free)
• Operating case temperature:
  Standard: 0 to +70°C
  Industrial: -40 to +85°C
•

•



  Parameters	Specifications
  Form Type	SFP+
  Max Data Rate	10Gbps
  Optical Components	DFB
  Wavelength	1310nm
  Max Cable Distance	10km SMF
  Interface	LC
  Cable Type	SMF
  Commercial Temperature Range	0 to 70°C (32 to 158°F)
  DOM Support	Yes




• 10GBASE-SR, LR, ER, ZR, ZX at 10.31/11.1Gbps
• SDH/SONET
• 1/10G and Multirate
• 10GBASE-LW at 9.95Gbps
• 1000 Base-LX Ethernet
• 8XFC at 8.5Gbps
• Other optical links
•
