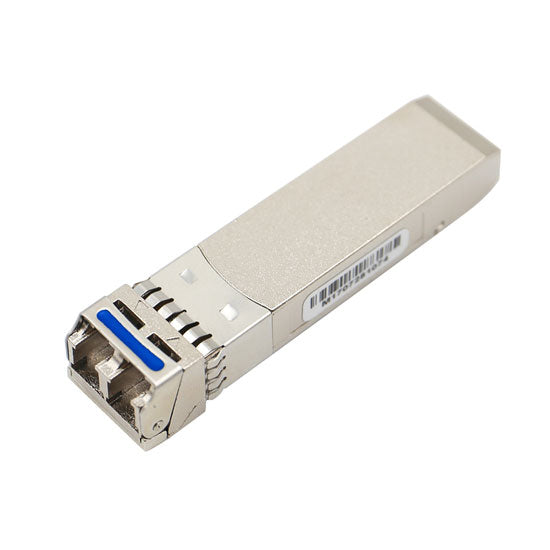

Compatible 25GBASE-SR SFP28 850nm 100m DOM LC MMF Transceiver Module Cisco

SFP28 optical transceivers are designed for use in 25G/28G data network over Single mode fiber or multimode fiber. The fiber transceivers complied with IEEE 802.3, SFF-8472 Rev 12.2, IEEE-8402,SFF-8432 and portions of SFF-8431 Rev.4.1. The 25G SFP28 Transceivers featured with small size for improving port density, reliable connecting, and low power consumption, it is idea Data Centers, 5G Network, HPC, 25G Ethernet and Fiber Channel.

• Up to 25.78, 27.95, 28.05 Gbps bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• Duplex LC connector
• Metal enclosure, for lower EMI
• 2W maximum power consumption
• Single 3.3V power supply
•


  Parameters	Specifications
  Form Type	SFP28
  Max Data Rate	25Gbps
  Optical Components	VCSEL
  Wavelength	850nm
  Max Cable Distance	100m OM4 MMF
  Interface	LC
  Cable Type	MMF
  Commercial Temperature Range	0 to 70°C (32 to 158°F)
  DOM Support	Yes




• Data Center
