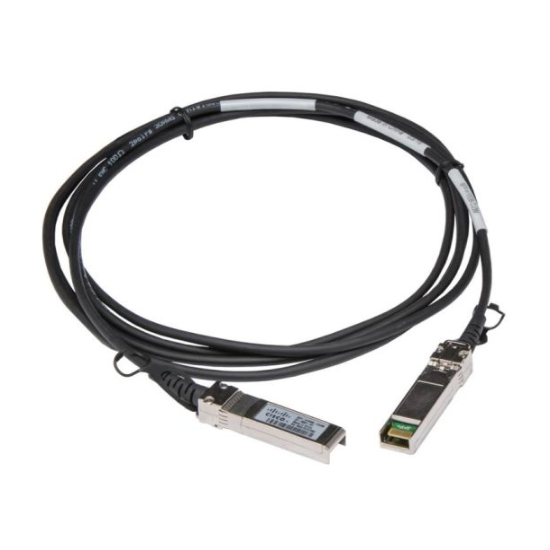

Cisco SFP-H10GB-CU5M Twinax Cable - 10GBASE-CU SFP+ Direct Attach Copper 5m
Cisco SFP-H10GB-CU5M Twinax Cable - 10GBASE-CU SFP+ Direct Attach Copper 5mSKU: JP-NET-1210
In stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
The Cisco SFP-H10GB-CU5M is a 5-meter Twinax Direct Attach Cable (DAC) designed for 10GBASE SFP+ to SFP+ connectivity. This passive copper cable provides a cost-effective, low-latency, and low-power alternative to optical transceivers for short-distance high-speed links. It is ideal for in-rack or rack-to-rack connections between switches, routers, and servers.
The cable is hot-swappable and features integrated SFP+ connectors on both ends, ensuring a reliable 10 Gigabit Ethernet connection. Since it is a passive copper assembly, it does not require additional power from the host system, making it an energy-efficient solution for data centers and enterprise wiring closets.
SPECIFICATIONS:
| Connector Type | SFP+ to SFP+ |
| Cable Type | Twinax Direct Attach Cable (DAC) |
| Maximum Data Rate | 10.3125Gbps |
| Cable Distance | 5m (16.4 ft) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Wire Gauge | 24AWG |
| Cable Type | Passive Copper |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Compliance | SFF-8431, SFF-8432 |
