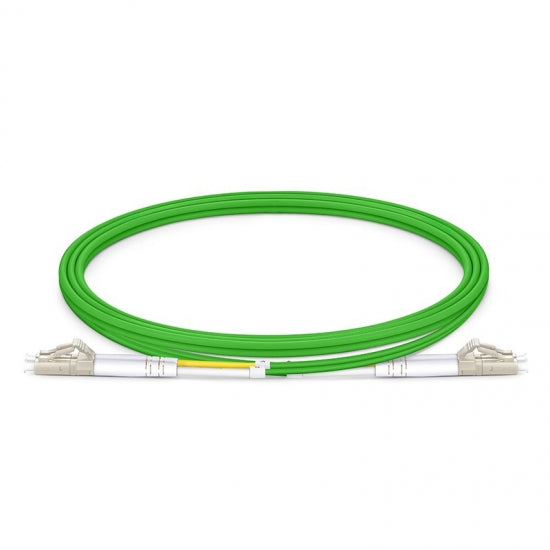

LC UPC to LC UPC Duplex OM5 Multimode Wideband (LSZH) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM5 Multimode Wideband (LSZH) 2.0mm Fiber Optic Patch Cable
SKU: TP-FPH-315
Aanbieding
Uitverkocht
Normale prijs
€6,44 EUR
Normale prijs
Aanbiedingsprijs
€6,44 EUR
Eenheidsprijs
per
Excl. BTW
500 in voorraad
Kan beschikbaarheid voor afhalen niet laden
Beschrijving
Beschrijving
Connector Type LC UPC to LC UPC
Fiber Grade Bend Insensitive
Fiber Mode OM5 50/125μm
Wavelength 850/1300nm
40G Ethernet Distance 440m at 850nm
100G Ethernet Distance 150m at 850nm
Insertion Loss ≤0.3dB
Return Loss ≥30dB
Min. Bend Radius (Fiber Core) 7.5mm
Min. Bend Radius (Fiber Cable) 20D/10D (Dynamic/Static)
Attenuation at 850nm 3.0 dB/km
Attenuation at 1300nm 1.0 dB/km
Effective Modal Bandwidth (at 850nm) ≥4700 MHz·km
Effective Modal Bandwidth (at 953nm) ≥2470 MHz·km
Fiber Count Duplex
Cable Diameter 2.0mm
Cable Jacket (LSZH)
Polarity A (Tx) to B (Rx)
Operating Temperature -20~70°C
Storage Temperature -40~80°C
