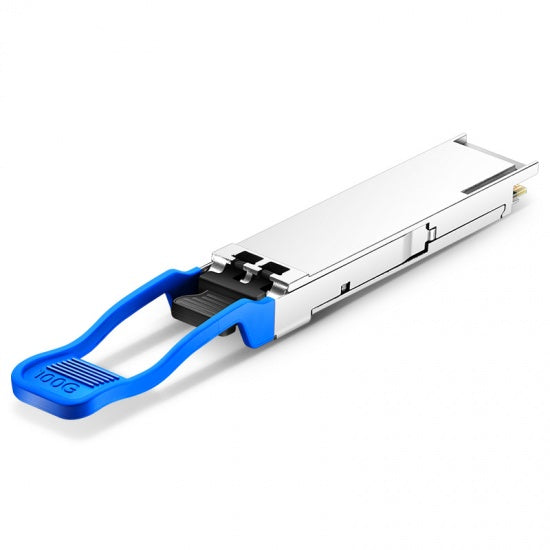

100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km DOM LC SMF Optical Transceiver Module
100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km DOM LC SMF Optical Transceiver Module
SKU: TP-TCV-329
Op voorraad
Verkocht: 0Kan beschikbaarheid voor afhalen niet laden
Cisco, Arista, Juniper, Dell Compatible QSFP28-100/112G-LR4-20
Form Factor QSFP28
Max Data Rate Dual Rate 103.1Gbps and 112Gbps
Wavelength 1310nm
Max Cable Distance 20km
Connector LC Duplex
Media SMF
Transmitter Type 4 x LAN WDM DML TOSA
Receiver Type 4 x PIN ROSA
TX Power(100G) -1.0~4.5dBm
Receiver Sensitivity(100G) <-9.5dBm
TX Power(112G) 0~4dBm
Receiver Sensitivity(112G) <-9.0dBm
Overload(100G) 4.5dBm
Receiver Overload(112G) 4dBm
Transmit and Dispersion Penalty 2.2dB
Powerbudget 8.5dB
Power Consumption ≤3.5W
Extinction Ratio >4dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation Format NRZ
Host FEC Supported
Protocols 100G Ethernet, 25G Ethernet, OTN OTU4 4I1-9D1F
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
