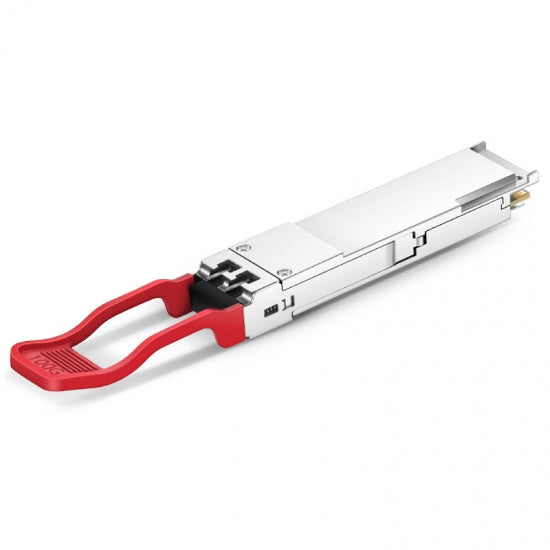

100GBASE-ER4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 40km DOM LC SMF Optical Transceiver Module
100GBASE-ER4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 40km DOM LC SMF Optical Transceiver Module
SKU: TP-TCV-333
Op voorraad
Verkocht: 0Kan beschikbaarheid voor afhalen niet laden
Cisco, Juniper, Dell Compatible QSFP28-100/112G-ER4
Form Factor QSFP28
Data Rate Dual Rate 103.1Gbps and 112Gbps
Wavelength 1310nm
Max Cable Distance 40km
Connector LC duplex
Media SMF
Transmitter Type 4 x LAN WDM DML TOSA
Receiver Type 4 x APD ROSA
TX Power(100G) -2.5~2.9dBm
Receiver Sensitivity(100G) <-15dBm
TX Power(112G) -1~3.3dBm
Receiver Sensitivity(112G) <-19dBm
Receiver Overload(100G) 2.9dBm
Receiver Overload(112G) 3.3dBm
Powerbudget 14dB
Transmit and Dispersion Penalty 2.5dB
Power Consumption ≤4.5W
Extinction Ratio >4dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Packaging Technology BOX Packaging
Modulation Format NRZ
CDR (Clock and Data Recovery) TX & RX Built-in CDR
Host FEC Supported
Protocols 100G Ethernet, 100G Telecom Connections, Infiniband QDR and DDR Interconnects
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
