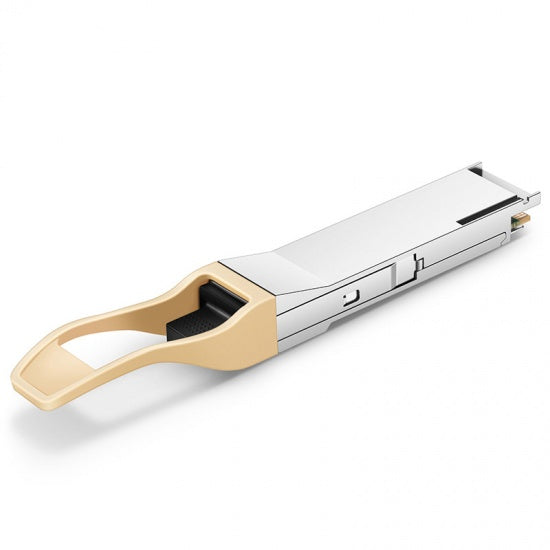

100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module (Industrial)
100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module (Industrial)
SKU: TP-TCV-336
Op voorraad
Verkocht: 0Kan beschikbaarheid voor afhalen niet laden
Cisco, Arista, Juniper, Dell Compatible QSFP28-100G-SR4-I
Form Factor QSFP28
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm
Max Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12
Media MMF
Transmitter Type VCSEL 850nm
Receiver Type PIN
TX Power -8.4~2.4dBm
Receiver Sensitivity <-10.3dBm
Powerbudget 1.9dB
Receiver Overload 2.4dBm
Typical Power Consumption ≤1.8W
Extinction Ratio ＞3dB
DDM/DOM Supported
Industrial Temperature Range -40 to 85°C (-40 to 185°F)
CDR (Clock and Data Recovery) TX & RX Built-in CDR
FEC Function Supported
Protocols IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
