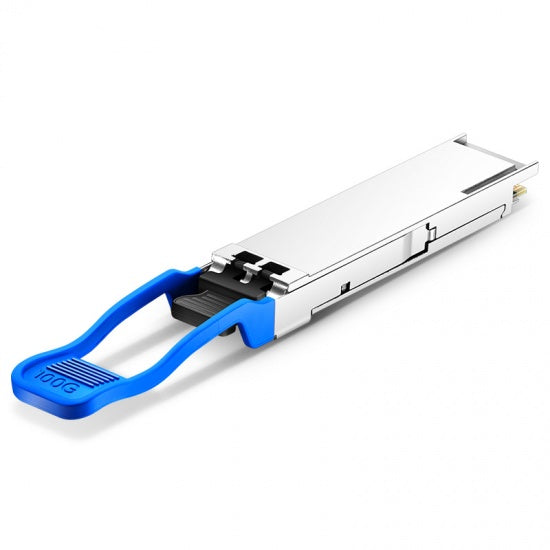

100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF Optical Transceiver Module (Industrial)
100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF Optical Transceiver Module (Industrial)
SKU: TP-TCV-340
Op voorraad
Verkocht: 0Kan beschikbaarheid voor afhalen niet laden
Cisco, Arista, Juniper, Dell Compatible 407-BCDH-I
Form Factor QSFP28
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm
Max Cable Distance 10km
Connector LC Duplex
Media SMF
Transmitter Type LAN WDM EML
Receiver Type PIN
TX Power -4.3~4.5dBm
Receiver Sensitivity <-10.6dBm
Powerbudget 6.3dB
Receiver Overload 4.5dBm
Power Consumption ≤4W
Extinction Ratio >4dB
DDM/DOM Supported
Industrial Temperature Range -40 to 85°C (-40 to 185°F)
Packaging Technology BOX Packaging
Modulation Format NRZ
CDR (Clock and Data Recovery) TX & RX Built-in CDR
Host FEC Supported
Protocols IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA Compliant
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
