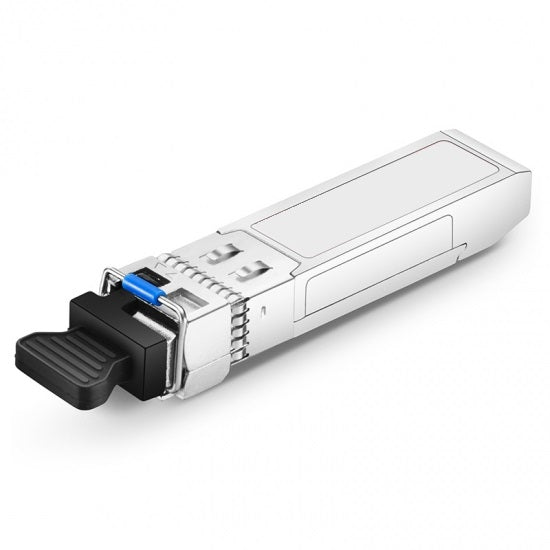

1000BASE-BX BiDi SFP 1310nm-TX/1550nm-RX 10km DOM LC SMF Transceiver Module
1000BASE-BX BiDi SFP 1310nm-TX/1550nm-RX 10km DOM LC SMF Transceiver Module
SKU: TP-TCV-58
Op voorraad
Verkocht: 0Kan beschikbaarheid voor afhalen niet laden
Cisco, Dell Compatible SFP-GE-BX10-1310
Form Factor SFP
Max Data Rate 1000Mbps
Wavelength 1310nm-TX/1550nm-RX
Max Cable Distance 10km
Connector LC simplex
Optical Components FP BiDi
Media SMF
DOM Support Yes
TX Power-9~-3dBm
Receiver Sensitivity <-23dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
