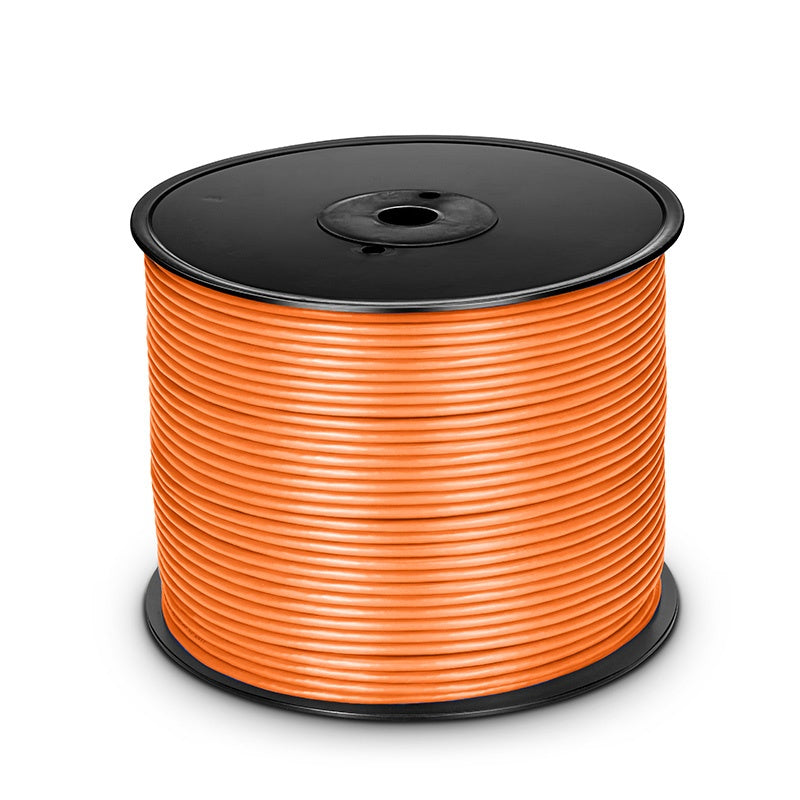

Cat6A U/UTP Data Cable, CU 692 4P
Cat6A U/UTP Data Cable, CU 692 4PSKU: DW-BC-004
Sale
Sold out
Regular price
€650.00 EUR
Regular price
Sale price
€650.00 EUR
Unit price
per
Excluding VAT
Shipping costs will be calculated at checkout.
In stock
-
- 1-Year Warranty
- 1-Year Warranty
-
- Would you like to order a larger quantity? Send an email to sales@telcoparts.com.
Couldn't load pickup availability
Description
High-quality Cat.6A data cable, both electrically and mechanically – meets the requirements of ISO/IEC 11801-1, IEC 61156-5, EN 50173-1, and EN 50288-11-1.

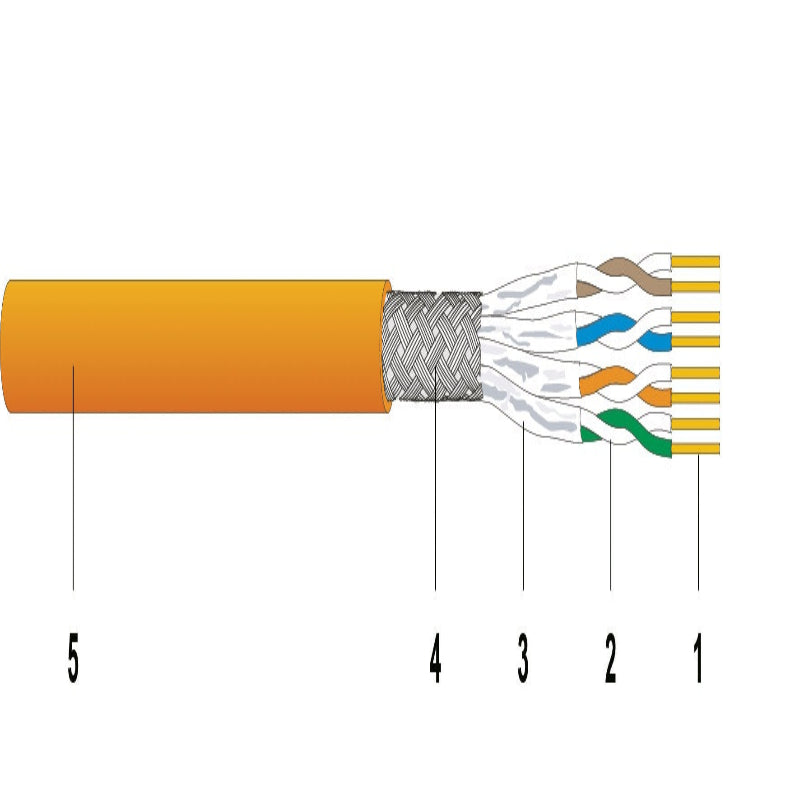

Robust cable design with reliable electrical performance thanks to a stabilizing element. Offers a large reserve capacity for the NEXT and Alien NEXT limit values due to the cable construction with a central element (cross) and an improved jacket design.
Compatible with all common connection materials in accordance with EN 50173 and ISO/IEC 11801.
SPECIFICATIONS:
|
| Category | Cat.6A |
| Gigabit per second | Up to 10 Gbit/s |
| Loop resistance at 20 °C | 136 Ω/km |
| Business capacity | 55 pF/m |
| Impedance at 100 MHz, ± 5Ω | 100 Ω |
| NVP % | 66 |
| Delay skew | 30 ns/100 m |
| Shielding | Unshielded |
| TCL | 50 dB |
| Segregation class | b |
| Outer shell | FRNC/LSZH |
| Coat color | Orange |
|
Download: |
Data sheet |
