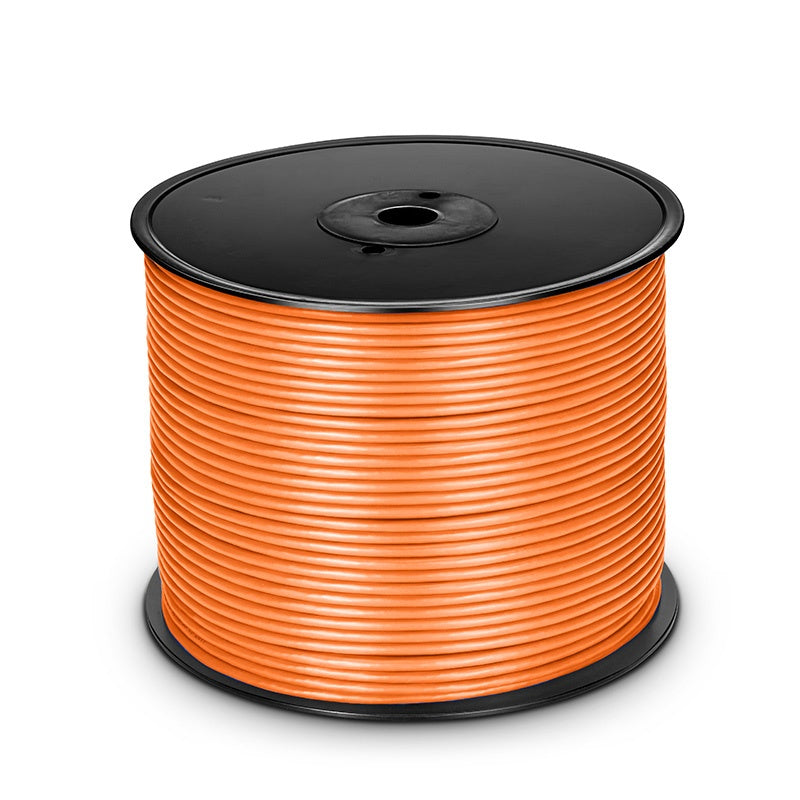

Cat7 Bulk Data Cable, CU 7080 2x4P
Cat7 Bulk Data Cable, CU 7080 2x4PSKU: DW-BC-361
Sale
Sold out
Regular price
€1,290.00 EUR
Regular price
Sale price
€1,290.00 EUR
Unit price
per
Excluding VAT
Shipping costs will be calculated at checkout.
In stock
-
- 1-Year Warranty
- 1-Year Warranty
-
- Would you like to order a larger quantity? Send an email to sales@telcoparts.com.
Couldn't load pickup availability
Description
Electrically and mechanically superior Cat.7 data cable - exceeds the requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1, and EN 50288-4-1.

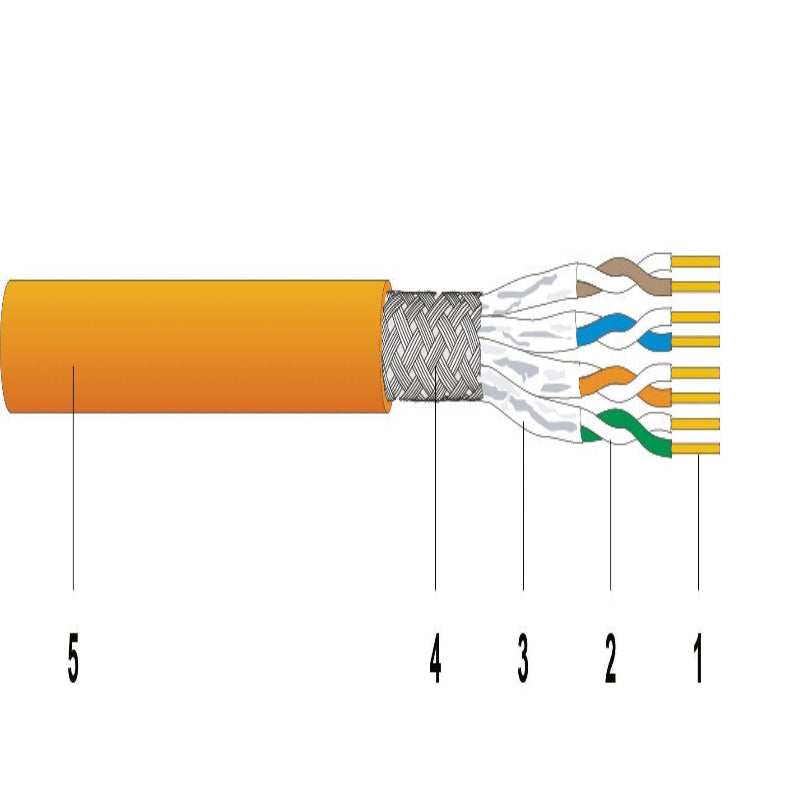

Excellent shielding effect due to individually shielded pairs and a global copper braid.
Compatible with all common connection materials in accordance with EN 50173 and ISO/IEC 11801.
SPECIFICATIONS:
|
| Category | Cat.7 |
| Gigabit per second | Up to 10 Gbit/s |
| Loop resistance at 20 °C | 140 Ω/km |
| Business capacity | 42 pF/m |
| Impedance at 100 MHz, ± 5Ω | 100 Ω |
| NVP % | 81 |
| Delay skew | 12 ns/100 m |
| Shielding | Shielded |
| Near-end unbalance attenuation LCL at 1-600 MHz | 40 dB |
| Transfer impedance | 1/10/30 MHz < 6/6/10 mΩ/m |
| Clutch damping | 85 dB |
| Segregation class | d |
| Outer shell | FRNC/LSZH |
| Coat color | Orange |
|
Download: |
Data sheet |
