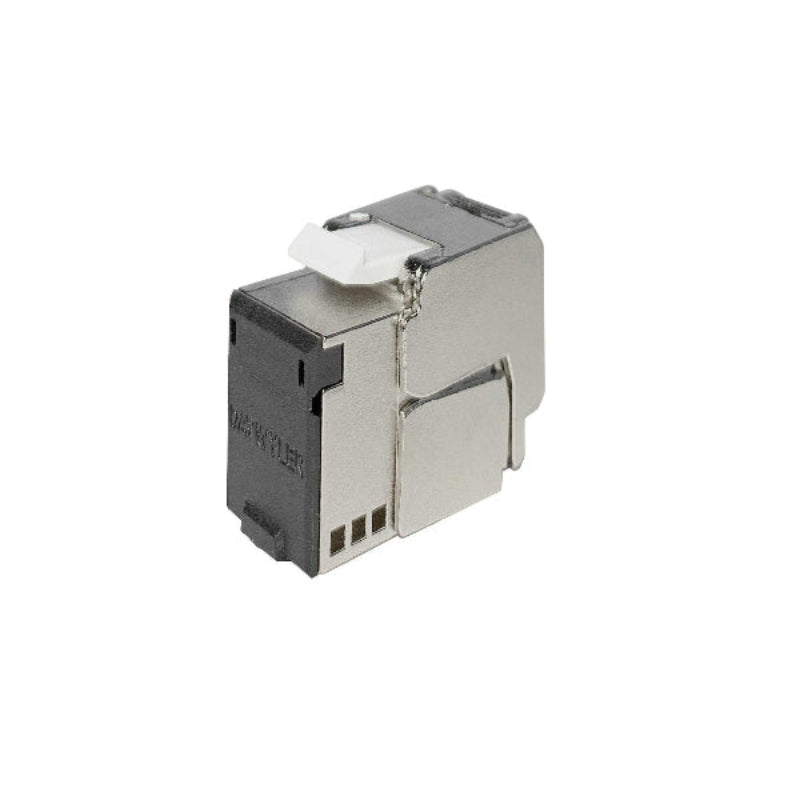

KS-TC Plus Cat.6A (IEC) tool-less, compact 12Pc

For transmission of digital and analog voice, video, and data signals.
The KS-TC Plus module is specified up to 500 MHz in accordance with the IEC 60603-7-51 component standard.
Allows acceptance testing with a high reserve capacity for the limit values specified for Class EA Permanent Connections
(Permanent Links) in combination with shielded Category 6A, 7, 7A, and 8 data cables. Therefore, the module is suitable for 10 Gigabit
Ethernet transmissions in accordance with IEEE 802.3.
Suitable for PoE, PoE+, and 4PPoE applications. Solid die-cast zinc housing with mounting clip for installation in
Keystone panels and data connection boxes.
Spring contact with phosphor bronze alloy, gold-plated.
A cable splitter is used to connect the wires in combination with two integrated movable wing housings for tool-free IDC connections. Only side cutters are needed to cut the wires.
The 360° metal shielding ensures a durable, fully shielded environment.
The module is reusable.
Potential equalization can be provided directly at the module when necessary.
With removable black dust cover.
Other colors available as accessories.
