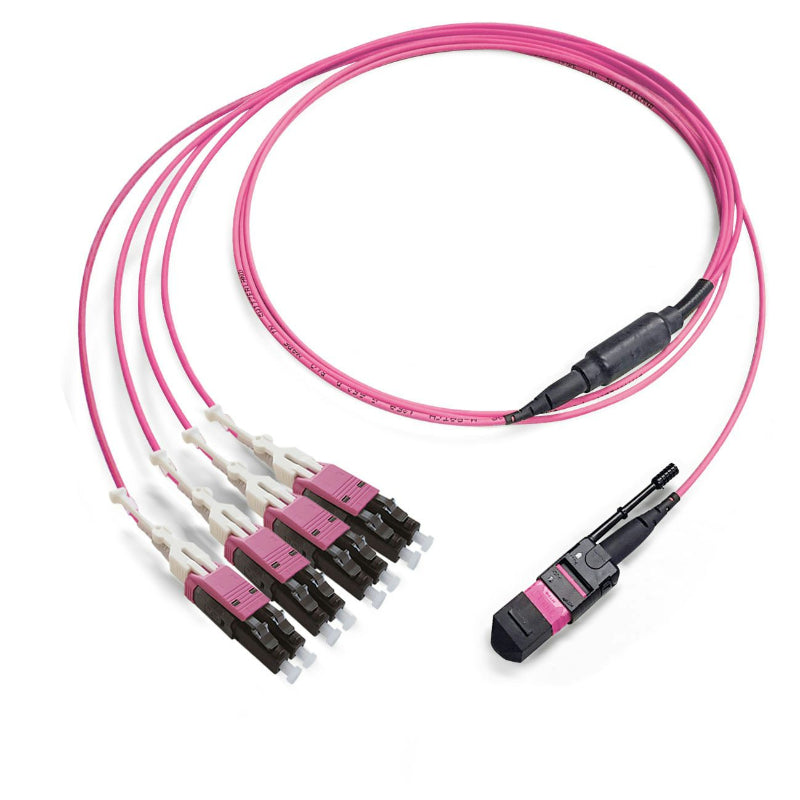

DCS fanout cables, 1x MTP/PC-f - 4x LCDU/PC, G50/125 OM4
DCS fanout cables, 1x MTP/PC-f - 4x LCDU/PC, G50/125 OM4SKU: DW-MTP-241
Sale
Sold out
Regular price
€179.00 EUR
Regular price
Sale price
€179.00 EUR
Unit price
per
Excluding VAT
Shipping costs will be calculated at checkout.
In stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
Thin, highly flexible fanout fiber optic cables (round cable, Ø 2.0 mm) with 8 fibers.
Low fire load due to its halogen-free, flame-retardant LS0H jacket.
Available with a standard length of 2.5 m (other lengths on request).
The standard connectivity methods can be type A or C.
Labeling with self-adhesive labels at both ends of the cable.
The breakout split is made with a thin housing for the split.
The fanned-out individual cables (Ø 2.0 mm), equipped with LCD Uniboot (LCDU) connectors, are numbered (1-4).
The fanned-out individual cables can be ordered in graduated lengths or in equal lengths.
SPECIFICATIONS:
|
| Fiber type | G50/125 OM4 |
| Color code | IEC 60304 |
| Connector type side A | MTP |
| Connector gender side A | Feminine |
| Ferrule polishing connector A | Elite PC 0° |
| IL maximum connector A | 0.25 dB |
| IL average connector A | 0.15 dB |
| RL minimum connector A | 35 dB |
| RL average connector A | 45 dB |
| Connector type side B | LCDU |
| Ferrule polishing connector B | PC 0° |
| IL maximum connector B | 0.25 dB |
| IL average connector B | 0.12 dB |
| RL minimum connector B | 35 dB |
| RL average connector B | 40 dB |
| Outer shell material | FR/LSZH |
| Coat color | Heather purple |
|
Download: |
Data sheet |
