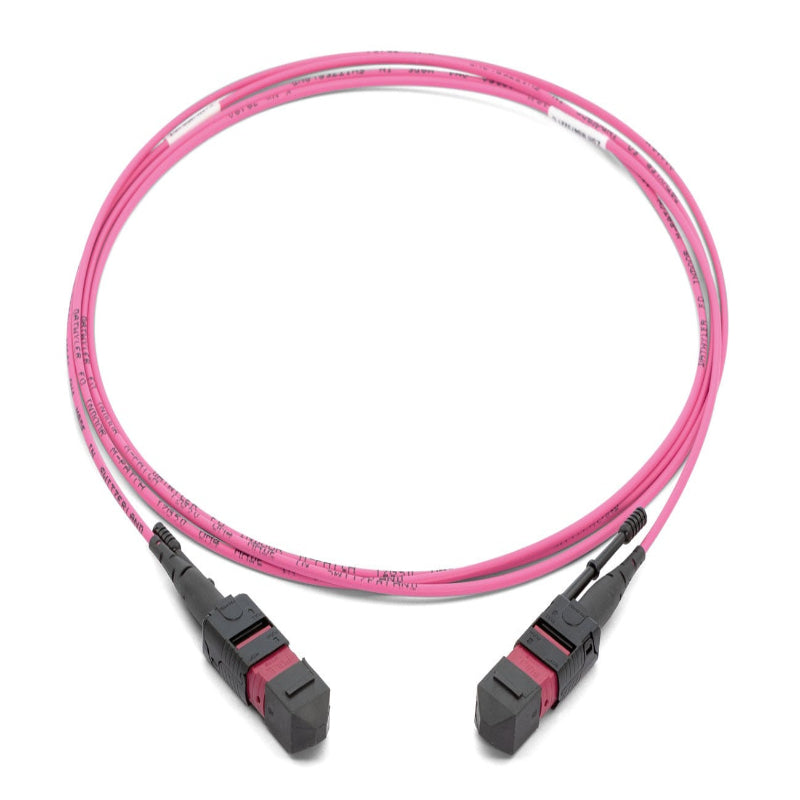

DCS patch cable, MTP/PC - MTP/PC, G50/125 OM4
DCS patch cable, MTP/PC - MTP/PC, G50/125 OM4SKU: DW-MTP-243
Sale
Sold out
Regular price
$115.00 USD
Regular price
Sale price
€105.00 EUR
Unit price
per
Excluding VAT
Shipping costs will be calculated at checkout.
In stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
Thin, highly flexible patch cords (round cable, Ø 2.0 mm) with 12 fibers.
Each patch cable is equipped with push-pull tabs.
Low fire load due to its halogen-free flame-retardant LS0H sheath.
Available in standard lengths up to 5 m (other lengths on request).
Labeling with self-adhesive labels at both ends of the cable.
The standard polarization modes can be type A, B, or C.
SPECIFICATIONS:
|
| Fiber type | G50/125 OM4 |
| Connector type side A | MTP/PC |
| Connector gender side A | Feminine |
| Ferrule polishing connector A | Elite PC 0° |
| IL maximum connector A | 0.25 dB |
| IL average connector A | 0.15 dB |
| RL minimum connector A | 35 dB |
| RL average connector A | 45 dB |
| Standard connector A | IEC 61754-7, IEC 61755-3-31, IEC 61755-3-32 |
| Connector type side B | MTP/PC |
| Connector gender side B | Feminine |
| Ferrule polishing connector B | Elite PC 0° |
| IL maximum connector B | 0.25 dB |
| IL average connector B | 0.15 dB |
| RL minimum connector B | 35 dB |
| RL average connector B | 45 dB |
| Standard connector B | IEC 61754-7, IEC 61755-3-31, IEC 61755-3-32 |
| Cable | Around |
| Outer shell material | FR/LSZH |
| Coat color | Heather purple |
|
Download: |
Data sheet |
