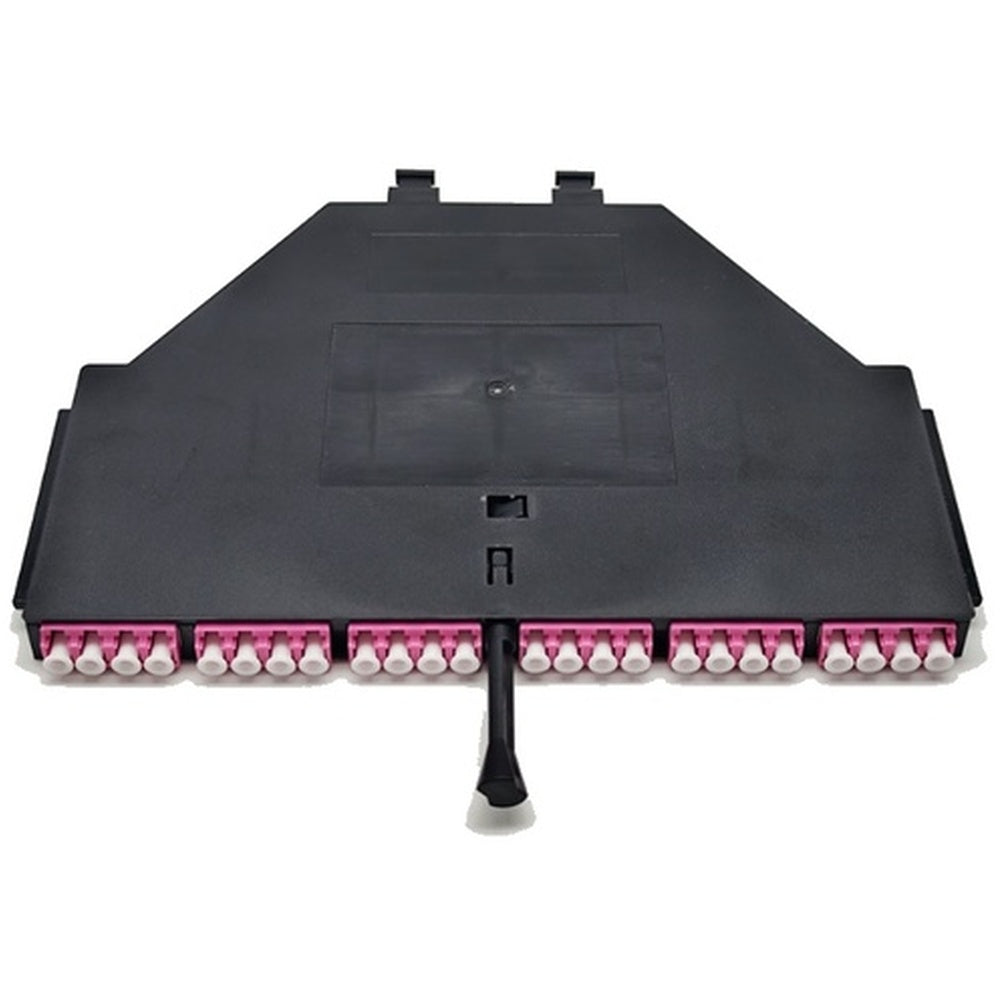

CDSM 24F MPO cassette OS2 with 1× 24-fiber MPO male, MPO-to-24 LC hydra cable, 6 quad LC adapters, and 1 MPO adapter
CDSM 24F MPO cassette OS2 with 1× 24-fiber MPO male, MPO-to-24 LC hydra cable, 6 quad LC adapters, and 1 MPO adapterSKU: TP-FEC-1078
In stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
The CDSM 24F MPO cassette is designed for high-density fiber optic applications in data centers. The cassette allows 24-fiber MPO/MTP trunk connections to be converted to simplex or duplex LC connections, enabling equipment, patch frames, or endpoints to be connected directly with standard patch cables.
The cassette is equipped with 1× OS2 24-fiber MPO male connectors with low attenuation (≤0.35 dB) and is internally assembled with MPO-to-LC hydra cables. The cassette has 6 quad duplex LC adapters on the front and 1 MPO adapter on the rear.
Thanks to its compact design and high port density, this MPO cassette is ideal for MDA, IDA, and HDA environments within modern data center architectures.
Key features
- 24 fibers (24F)
- OS2
- 1× 24-fiber MPO male connector
- Standard loss ≤ 0.7 dB
- MPO-to-LC hydra cable configuration
- 6× quad duplex LC adapters (front)
- 1× MPO adapters (rear)
- Made from high-quality technical plastic
- Quick installation, flexible configuration, and easy management
Application
- Data center cabling
- High-density MPO-to-LC breakout
- Direct connection to active equipment and patch frames
Connector specifications MTP/MPO connector:
| Property | Single mode | Multimode |
|---|---|---|
| Insertion loss (dB) | ≤0.60 (standard)≤0.35 (elite) | ≤0.60 (standard)≤0.35 (elite) |
| Return loss (dB) | ≥60 | ≥20 |
| Sustainability | ≤0.2 dB (500 times coupling) | ≤0.2 dB (500 times coupling) |
| Tensile strength | 10 kgf | 10 kgf |
| Operating temperature | -20 °C to +70 °C | -20 °C to +70 °C |
| Property | Single mode | Multimode |
|---|---|---|
| Insertion loss (dB) | ≤0,30 | ≤0,30 |
| Return loss (dB) | ≥60 | ≥20 |
| Sustainability | ≤0.2 dB (500 times coupling) | ≤0.2 dB (500 times coupling) |
| Tensile strength | 10 kgf | 10 kgf |
| Operating temperature | -20 °C to +70 °C | -20 °C to +70 °C |
| Parameter | X-axis Min | X-axis Max | Y-axis Min | Y-axis Max |
|---|---|---|---|---|
| Bending radius (mm) | 500 | – | 50 | – |
| Polishing angle | 0–0.2 | 0–0.2 | 8–0.2 | 8–0.2 |
| Fiber height (nm) | 1000 | 3000 | – | – |
| Maximum fiber height deviation (nm) | 600 | – | – | – |
| Deviation of adjacent fibers (nm) | -300 | +300 | – | – |
| Average fiber height deviation (nm) | -300 | +300 | – | – |
