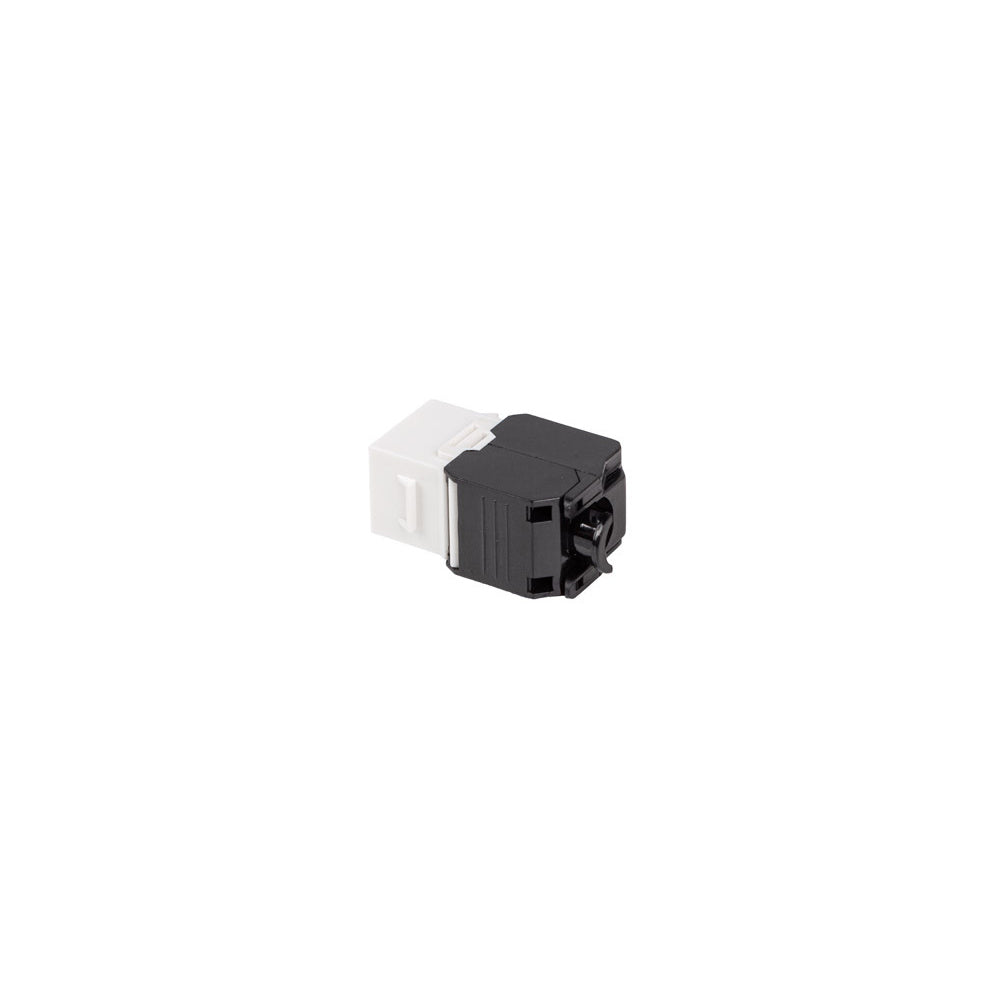

KEYSTONE MODULE TOOL-LESS RJ45 CAT.6 UTP 20Pc
KEYSTONE MODULE TOOL-LESS RJ45 CAT.6 UTP 20PcSKU: TP-FEC-1069
1000 in stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
Keystone RJ45 CAT6 UTP connector is a versatile solution that can be freely installed in various keystone adapters with standard dimensions (height × width) of 16.10 × 14.50 mm. This makes the connector compatible with 45×45 wall socket adapters, installation frames, modular panels, and other adapter types, ensuring wide applicability.
The LAN connector is equipped with an IDC connection cap and color-coded connection markings according to T568A/B. The universal LSA connections enable fast and reliable installation, even with tool-free connection.
Important Features:
-
Connector
-
External: 1× RJ45 female (8P/8C)
-
Internal: LSA (toolless)
-
Category: CAT6
-
Shielding: UTP (unshielded)
-
Standards:
-
EN 50173-1:2011
-
EN 60603-7-4
-
ANSI/TIA 568-C.2
-
Suitable for cables: flexible and solid, up to Ø 0.644 mm (22–24 AWG)
-
PoE support: up to 36 V via keystone
-
Application: Professional network and data installations
SPECIFICATIONS:
| Type |
Module
|
| Connectors |
RJ-45
|
| ICT category |
Cat. 6
|
| Shielding type |
U/UTP
|
| Installation without tools |
Yes
|
| Case material |
ABS
|
| Connector material |
Phosphor bronze
|
| Color |
Silver
|
| Lifespan of the socket |
> 750 cycles
|
| AWG |
22 - 24
|
| PoE power supply type |
Power over Ethernet
|
| Maximum voltage |
36 V
|
| Keystone port width |
14.5 mm
|
| Keystone port height |
16.1 mm
|
| Length |
34 mm
|
| Width |
14.5 mm
|
| Height |
19.6 mm
|
| Ambient temperature |
-10 - 60 °C
|
