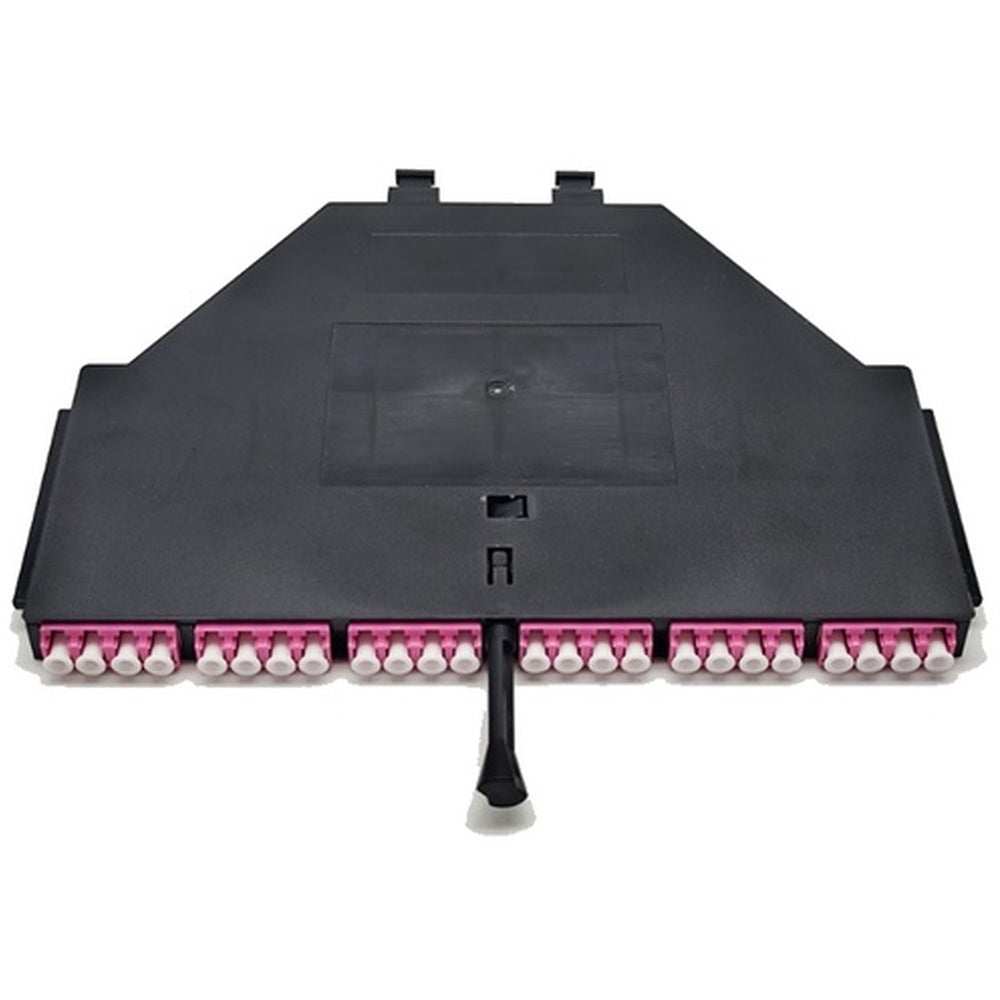

144F High Density Rack Chassis, maximum support 6x MPO Cassettes, without cassettes
144F High Density Rack Chassis, maximum support 6x MPO Cassettes, without cassettesSKU: TP-FEC-1073
60 in stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
High Density's FHD® 1U rack mount fixed fiber enclosure provides space for up to 4 FHD® cassettes or fiber adapter panels within just 1U of rack space. This makes the enclosure extremely flexible for various applications such as patching, fiber termination, and splitting.
The design is optimized for ease of use: the top cover can be removed without tools, making cable management and maintenance quick and easy. The enclosure can serve as a transition from backbone to distribution cabling, as an interconnection to active network equipment, or as a cross-connect/interconnect in main or horizontal distribution areas.
The FHD® High Density Series also offers different sizes (1U/2U/4U) and styles, making it a versatile choice for data centers, enterprise networks, and backbone solutions.
SPECIFICATIONS:
|
| Fiber type | OS2/ OM3 / OM4 / OM5 |
| Connector A | Duplex LC Uniboot |
| Connector B | Duplex LC Uniboot |
| Polishing type | PC / UPC / APC |
| Insertion loss (dB) | Max. ≤ 0.3 Typical ≤ 0.15 |
| Return loss (dB) | PC ≥ 45 UPC ≥ 55 APC ≥ 60 |
| Repeatability (dB) | IL ≤ 0.2RL ≤ 5 |
| Vibration (dB) | IL ≤ 0.2RL ≤ 5 |
| Interchangeability (dB) | IL ≤ 0.2RL ≤ 5 |
| Sustainability | ≤ 0.2 typical change |
| Operating temperature (°C) | -40 ~ +80 |
| Ferrule material | Zirconia ceramic |
| Coating material | LSZH |
| Cable length (m) | 1, 2, 5, 10, or custom |
| Cable diameter (mm) | Ø 2,0 |
