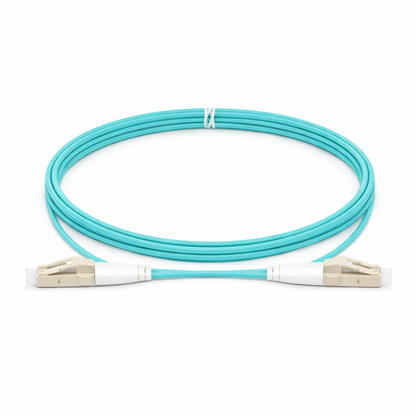

LC UPC to LC UPC Uniboot Duplex OM4 Multimode (LSZH) 2.0mm BIF Fiber Optic Patch Cable
LC UPC to LC UPC Uniboot Duplex OM4 Multimode (LSZH) 2.0mm BIF Fiber Optic Patch CableSKU: TP-FP-955
Sale
Sold out
Regular price
€8.90 EUR
Regular price
Sale price
€8.90 EUR
Unit price
per
Excluding VAT
Shipping costs will be calculated at checkout.
50 in stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
This OM4 fiber optic patch cable with uniboot design combines both fibers in a single flat jacket, reducing cable volume and creating a neater cabling structure. This makes the cable ideal for environments with high connection density, such as modern data centers where space savings and clear cable management are essential.
Thanks to the reversible polarity system, the fiber configuration can be quickly adjusted without tools and without exposing the fiber optics. The bend-insensitive fiber technology (BIF) used guarantees reliable performance.
SPECIFICATIONS:
|
| Fiber type | Multimode OM4 |
| Connector A | Duplex LC Uniboot |
| Connector B | Duplex LC Uniboot |
| Polishing type | UPC |
| Insertion loss (dB) | Maximum ≤0.3 |
| Return loss (dB) | ≥55 |
| Repeatability (dB) | IL ≤0.2 RL≤5 |
| Vibration (dB) | IL ≤0.2 RL≤5 |
| Interchangeability (dB) | IL ≤0.2 RL≤5 |
| Sustainability | ≤0.2 dB typical change (500 connections) |
| Operating temperature (°C) | -40 to +80 |
| Ferrule material | Zirconia Ceramic |
| Material jacket | LSZH (Low Smoke Zero Halogen) |
| Cable diameter (mm) | Ø 2,0 |
