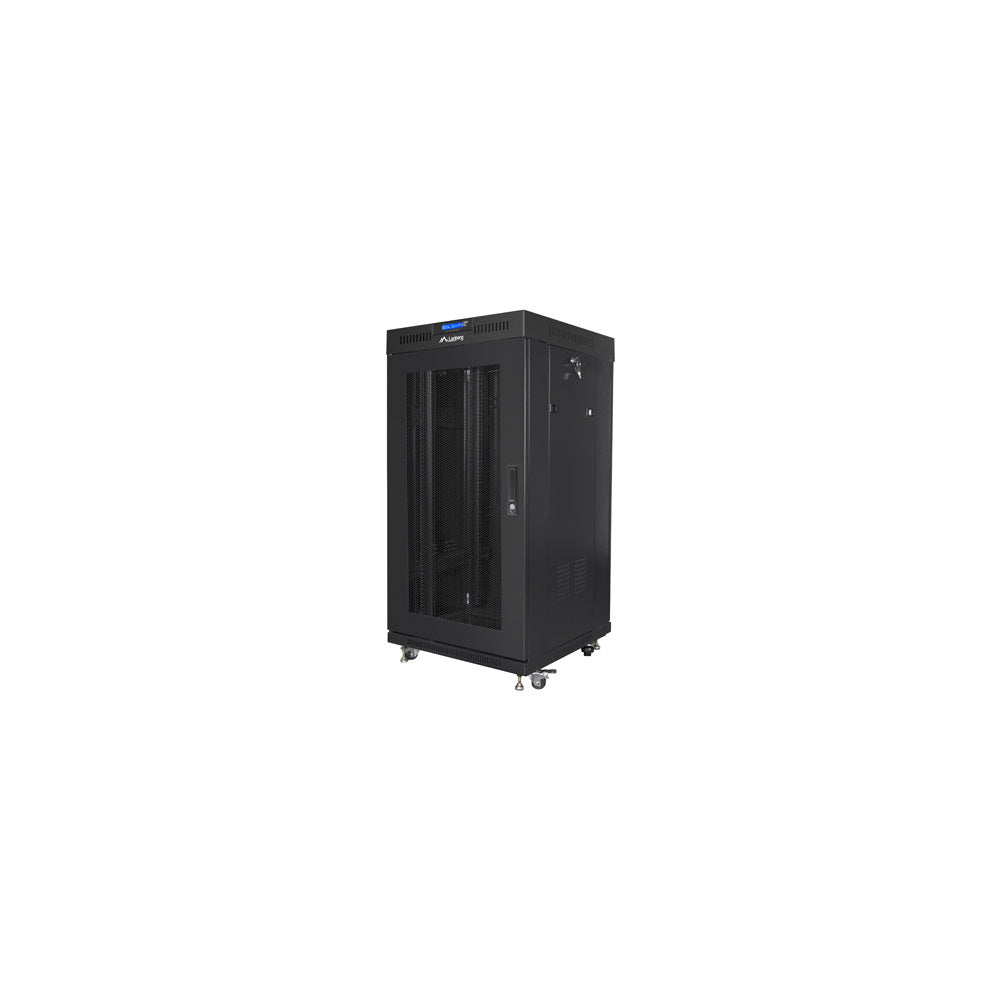

22U 19-inch upright server cabinet 600×600 – perforated mesh door with LCD – black
22U 19-inch upright server cabinet 600×600 – perforated mesh door with LCD – blackSKU: TP-RC-1341
5 in stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
These upright server cabinets are a well-designed and professional solution for IT environments where the secure storage and management of large quantities of server and network equipment is essential. The design makes efficient use of the available space, while the robust construction ensures durability and long-term reliable use.
The server cabinets are available in various sizes and configurations, making them easy to tailor to specific installation and capacity requirements. Thanks to high-quality materials and precise design, the cabinets offer optimal working conditions for server equipment, as well as easy access and management of the ICT infrastructure. The sleek, functional design and the possibility of expansion with accessories and mounting materials make these server cabinets suitable for both large organizations and smaller companies looking for a reliable and professional IT solution.
SPECIFICATIONS:
| Cabinet type |
Standing
|
| Rack size |
19 inches
|
| Height |
22 U
|
| Assembly | Assemble yourself |
| Working depth |
480 mm
|
| Front door type |
Perforated
|
| Rear door type |
Perforated
|
| Door type |
Single door
|
| Maximum static load |
1200 kg
|
| Fan positions |
2
|
| Number of vertical rails |
4
|
| Thermostat | Yes |
| LCD panel | Yes |
| Color |
Black
|
| RAL color |
RAL9004
|
| weather resistance rating |
IP20
|
| Front door (thickness) |
1.2 mm
|
| Back of door (thickness) |
1.2 mm
|
| Top & bottom panel (thickness) |
1.5 mm
|
| Side panels (thickness) |
1.2 mm
|
| Mounting rails (thickness) |
2.0 mm
|
| Frame (thickness) |
1.5 mm
|
| Other parts (thickness) |
1.2 mm
|
| Depth |
600 mm
|
| width |
600 mm
|
| Height |
1132 mm
|
| Weight |
71 kg
|
| Standards |
ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
European Telecommunications Standards Institute
IEC 297-2:1982
|
| Grounding |
Front door
Bottom panel
Frame
|
| Includes Accessories |
Manual Grounding cable Wheels with brakes Adjustable legs Ventilation panel M6 mounting screws Thermostat Front lock Side ditches Lock for rear Side ditches |
