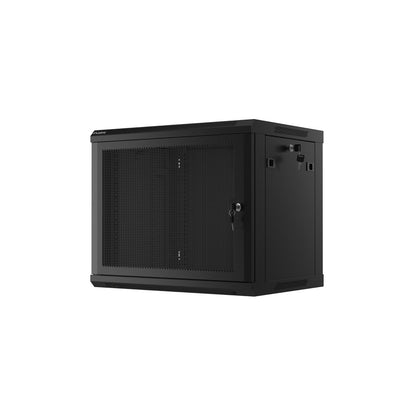

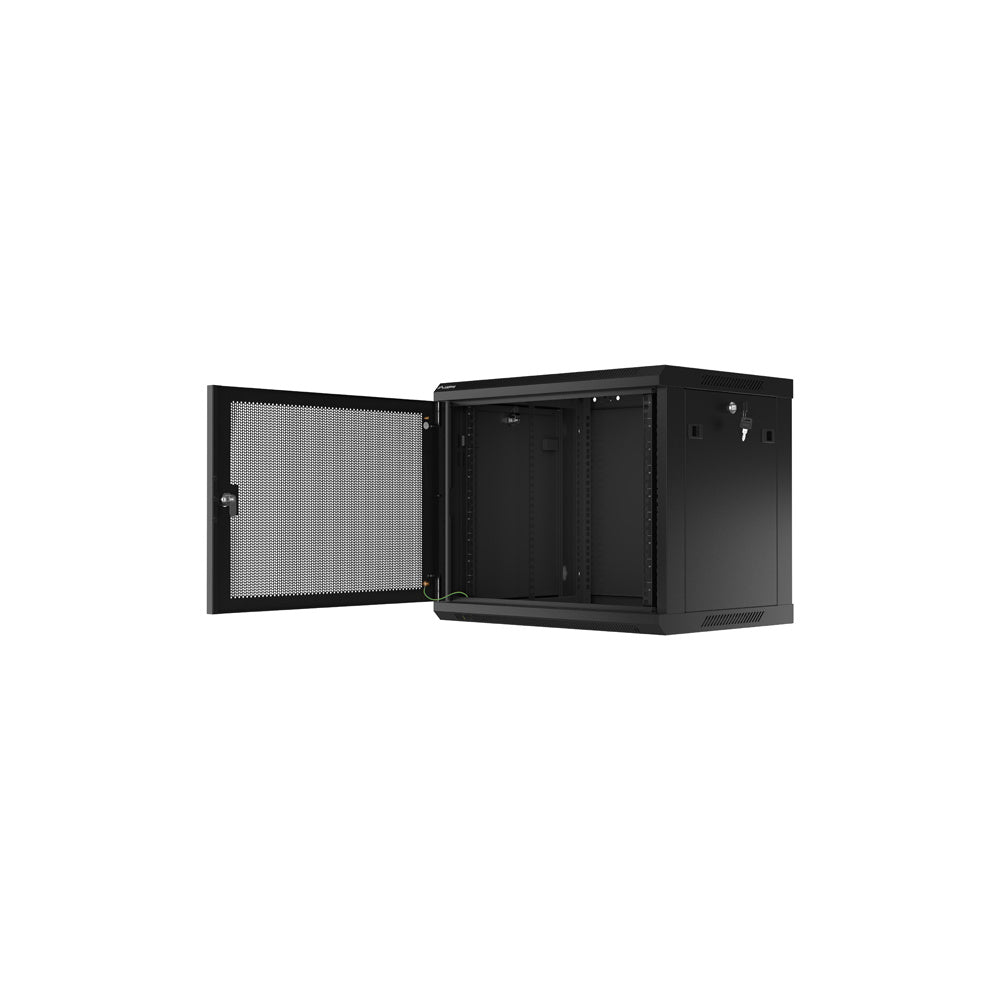

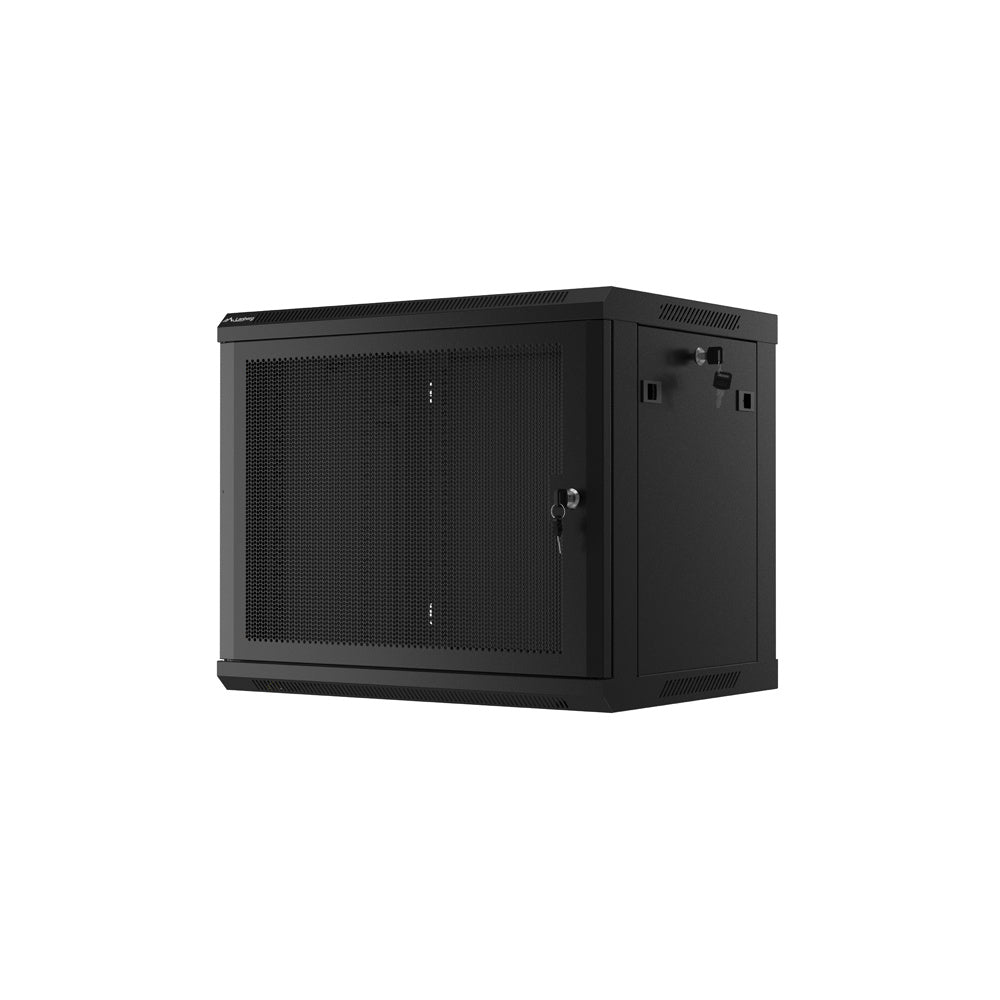

9U wall cabinet 19" with perforated door (flat pack) Black
9U wall cabinet 19" with perforated door (flat pack) BlackSKU: TP-RC-1342
5 in stock
-
- 1-Year Warranty
-
- Would you like to place a larger order? Send an email to sales@telcoparts.com
Couldn't load pickup availability
Description
This server cabinet is a modern and durable rack solution for business IT and network environments. The cabinet is made from high-quality materials and is characterized by its robust construction and easy installation. It therefore meets the requirements of demanding IT professionals.
The server cabinet is available in various sizes and configurations, making it easy to choose the right solution for your installation. It supports efficient cable management and ensures safe and orderly placement of network and server equipment. Functionality, durability, and sleek design come together in a reliable choice for professional ICT infrastructures.
SPECIFICATIONS:
| Cabinet type |
Wall mounting
|
| Rack size |
19 inches
|
| Height |
9 U
|
| Assembly | Assemble yourself |
| Working depth |
379.5 mm
|
| Door type |
Perforated
|
| Door type |
Single door
|
| Maximum static load |
60 kg
|

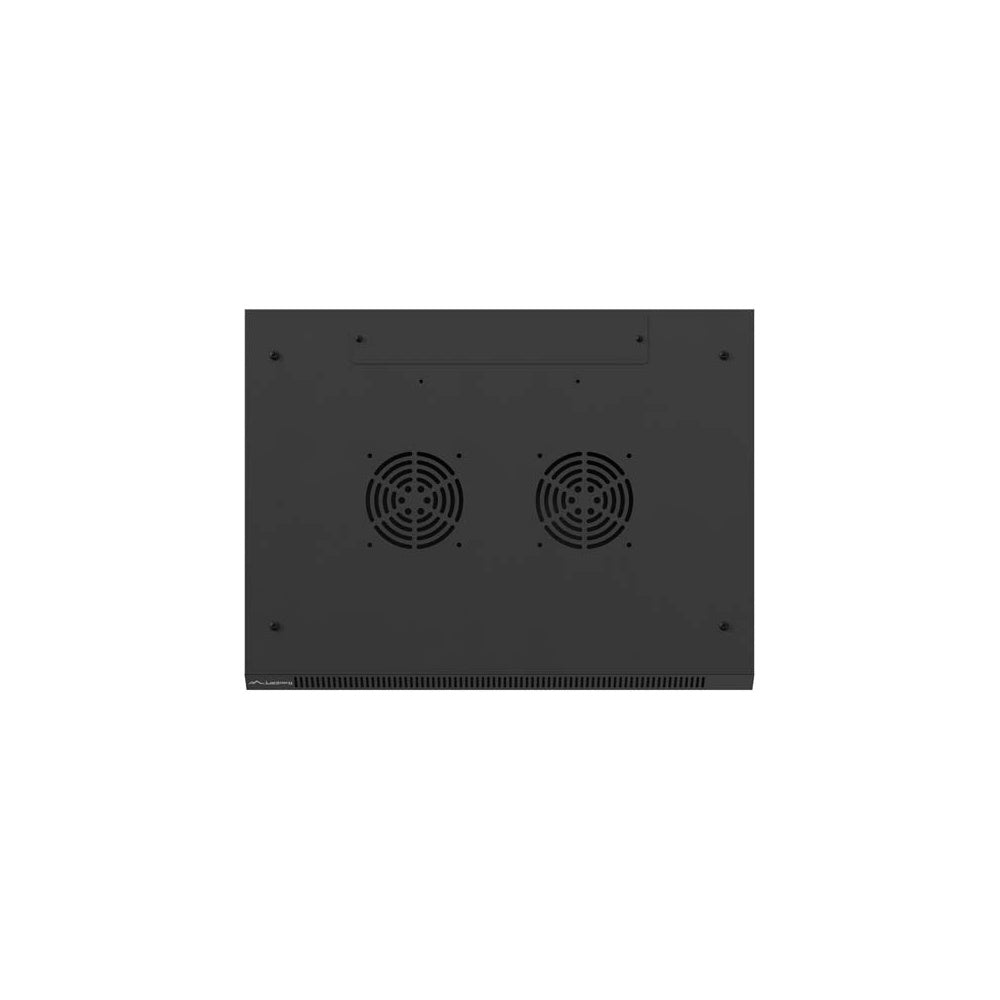

| Fan positions |
2
|
| Number of vertical rails |
4
|
| Thermostat |
No
|
| LCD panel |
No
|
| Color |
Black
|
| RAL color |
RAL9004
|
| weather resistance rating |
IP20
|
| Front door (thickness) |
1.5 mm
|
| Back of door (thickness) |
1 mm
|
| Top & bottom panel (thickness) |
1.2 mm
|
| Side panels (thickness) |
1 mm
|
| Mounting rails (thickness) |
1.5 mm
|
| Frame (thickness) |
1.2 mm
|
| Other parts (thickness) |
1.2 mm
|
| Depth |
450 mm
|
| width |
600 mm
|
| Height |
512.35 mm
|
| Weight |
18 kg
|
| Standards |
ANSI/EIA RS-310-D
DIN 41491/PART 1
DIN 41494/PART 7
European Telecommunications Standards Institute
IEC 297-2:1982
|

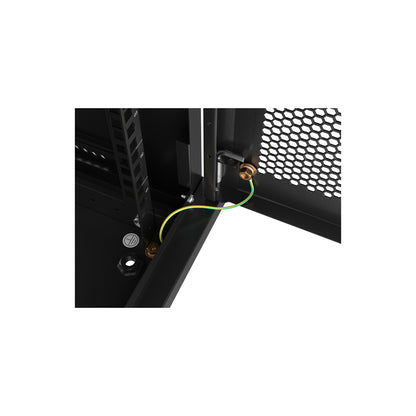

| Grounding |
Front door
Bottom panel
|
| Includes Accessories |
Manual Grounding cable M6 mounting screws Wall bracket / mounting brackets Door lock (front) Side ditches Mounting kit (assembly parts) |
