Cisco
Cisco-Switches-N9K-C93180YC-EX
SKU: CC-NET-1261 | MPN: N9K-C93180YC-EX | EAN: 54909510
Unit price excl. VAT
Aanbieding
Uitverkocht
Normale prijs
3.900,00 EUR
Normale prijs
Aanbiedingsprijs
3.900,00 EUR
Eenheidsprijs
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

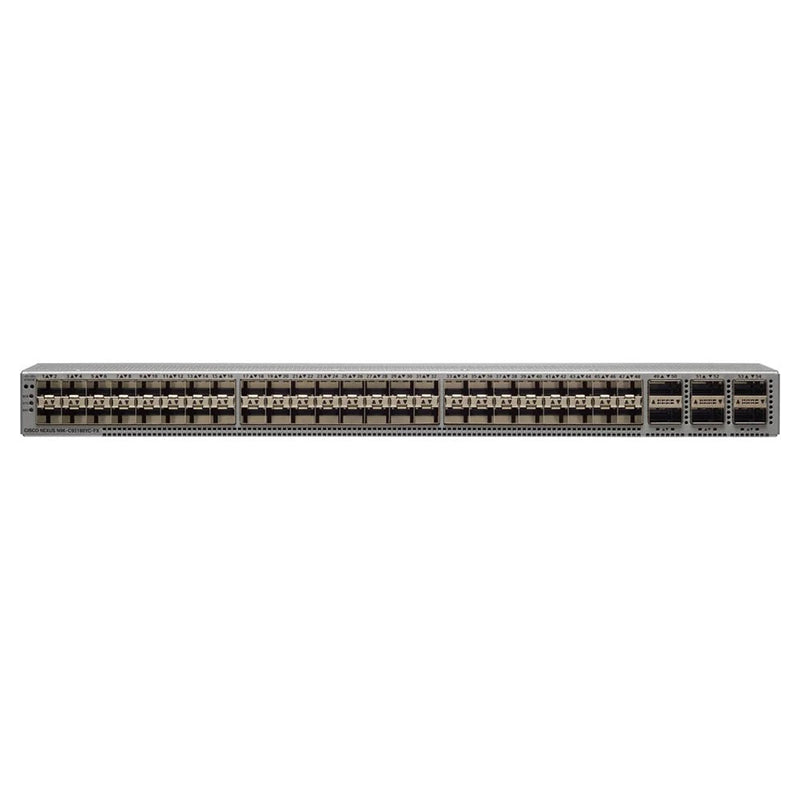

About Cisco Cisco-Switches-N9K-C93180YC-EX
| Prestaties | Bandbreedte: 3,6 Tbit/s ¦ Actieve SPAN-sessies: 4 |
| Routeringsprotocol | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| RAM | 16 GB |
| Geïnstalleerde hoeveelheid | 0 (Geïnstalleerd) / 2 (Max.) |
| Poorten | 48 × 1/10/25 Gigabit SFP+ + 6 × 40/100 Gigabit QSFP+ |
| Grootte van de MAC-adrestabel | 512,000-vermeldingen |
| Voedingsredundantie | Optioneel |
| Subtype | 25 Gigabit Ethernet |
| Kenmerken | Layer 3-switching, hoge beschikbaarheid, 4 hot-swappable ventilatoren, Virtual PortChannel (vPC)-technologie, In-Service Software Upgrade (ISSU), NPV Gateway-modus, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN) |
| Constructie | Origineel |
| Ingebouwde apparaten | 64GB SSD |
| Behuizingstype | Rackmonteerbaar 1U |
| Interfaces | 48 × 1/10/25Gbit LAN SFP+ downlink ¦ 6 × 100Gbit/40Gbit LAN QSFP28 uplink ¦ 1 × beheer RJ-45 ¦ 1 × beheer SFP+ ¦ 1 × USB ¦ 1 × serieel (RS-232) |
| Voedingsapparaat | Interne voeding - hot-plug |
| Capaciteit | Meerdere Spanning Tree Protocol instanties: 64 ¦ HSRP groepen: 490 ¦ Per VLAN Rapid Spanning Tree gevallen: 4000 ¦ Maximaal aantal links in een slotkanaal: 32 ¦ Maximaal aantal slotkanalen: 512 ¦ ECMP paden: 64 |
| Apparaattype | Switch - 48 poorten - L3 |
Specificaties
General Information
BrandCisco
Manufacturer Part NumberN9K-C93180YC-EX
Product SeriesNexus 9300-EX
Product FamilyNexus 9000
Product TypeData Center Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 3
Warranty1 year
Ports & Connectivity
Port Configuration48 x 1/10/25G SFP28 + 6 x 40/100G QSFP28
Total Ports54
Port Speed (max)100 Gbps
Uplink Ports6 x 40/100G QSFP28
Console Ports1 x RJ-45, 1 x USB-A, 1 x mgmt RJ-45
Power over Ethernet
PoE StandardNo PoE
Prestaties
Switching Capacity3.6 Tbps
Forwarding Rate2400.0 Mpps
Forwarding Bandwidth3600 Gbps
Latency1500 ns
Buffer Memory40.0 MB
MAC Address Table92k
Jumbo Frame9216 bytes
VLAN Support4096
Max Active VLANs4094
Routing & Layer 3
IPv4 Routes (max)92000
IPv6 SupportYes
Routing ProtocolsStatic, OSPFv2, OSPFv3, BGP, BGP4+, BGP-EVPN, IS-IS, PIM, IGMP, MLD, VRRP, VRRPv3, VXLAN, EVPN, MPLS
Stacking & High Availability
Stacking SupportvPC (Virtual Port-Channel)
System Hardware
CPUIntel x86 quad-core 1.8 GHz
RAM16384 MB
Flash Memory65536 MB
Power & Environment
Power Consumption (max)1100 W
Power SupplyDual hot-swap 1100W AC/DC
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature0 °C to +40 °C
Physical
Dimensions (W x D x H)437 x 460 x 44 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, NETCONF, RESTCONF, NX-API
Documentation
