Cisco

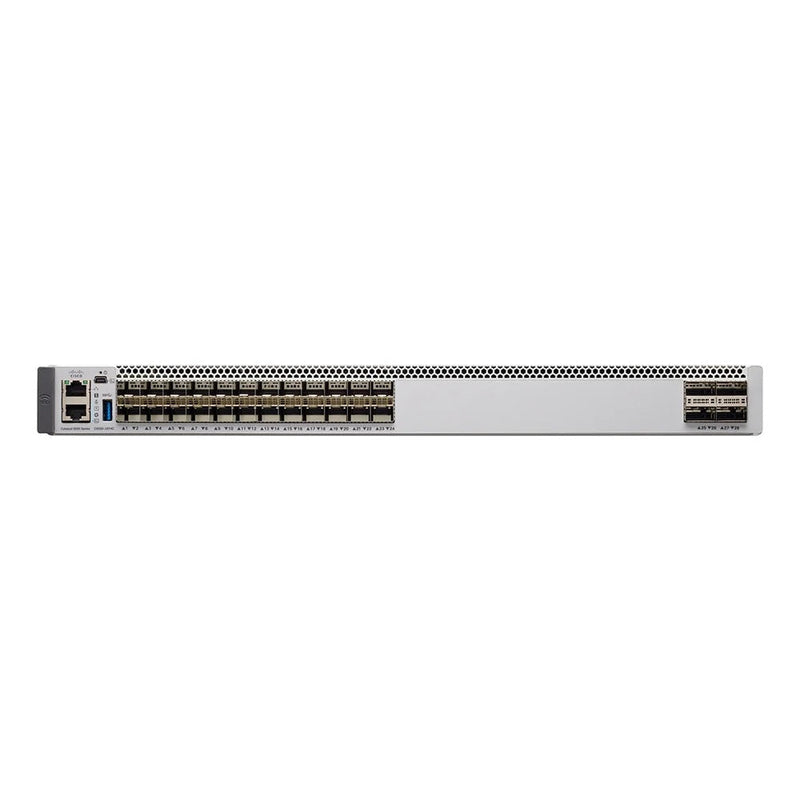

Cisco-Switches-C9500-24X-E
SKU: CC-NET-1257 | MPN: C9500-24X-E | EAN: 55663174
Unit price excl. VAT
Aanbieding
Uitverkocht
Normale prijs
5.840,00 EUR
Normale prijs
Aanbiedingsprijs
5.840,00 EUR
Eenheidsprijs
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Switches-C9500-24X-E
| Prestaties | Switchingcapaciteit (full duplex): tot 480 Gbit/s ¦ Doorstuursnelheid: tot 360 Mpps |
| Encryptie-algoritme | 256-bit AES |
| Routeringsprotocol | OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, Policy-Based Routing (PBR), RIPng |
| RAM | 16 GB |
| Jumbo Frame Ondersteuning | 9198 bytes |
| Poorten | 16 × 10 Gigabit Ethernet + 8 × 10 Gigabit SFP+ |
| Grootte van de MAC-adrestabel | 64,000-vermeldingen |
| Conforme standaarden | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae |
| Subtype | 10 Gigabit Ethernet |
| Kenmerken | DHCP-ondersteuning, NAT-ondersteuning, PAT-ondersteuning, Trunking, MPLS-ondersteuning, IGMP Snooping, Syslog-ondersteuning, IPv6-ondersteuning, Non-Stop Forwarding (NSF), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP)-ondersteuning |
| Constructie | Origineel |
| Processor | 1 × 2,4 GHz |
| Behuizingstype | Rackmonteerbaar 1U |
| Protocol voor beheer op afstand | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Capaciteit | IPv4 Indirecte Routes: 64.000 ¦ Host IPv4 Routes: 80.000 ¦ IPv6 Indirecte Routes: 32.000 ¦ Host IPv6 Routes: 40.000 ¦ Multicast-schalen: 16.000 ¦ QoS ACL-schalen: 18.000 ¦ Beveiligings-ACL-schalen: 18.000 ¦ FNF-ingangen: 512.000 ¦ VLAN-ID's: 4.000 ¦ Geschakelde virtuele interfaces |
| Apparaattype | Switch - 24 poorten - L3 - managed |
Specificaties
General Information
BrandCisco
Manufacturer Part NumberC9500-24X-E
Product SeriesCatalyst 9500
Product FamilyCatalyst 9500
Product TypeManaged Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 3
Warranty1 year
Ports & Connectivity
Port Configuration24 x 1G/10G SFP+ + modular uplink (NM)
Total Ports24
Port Speed (max)10 Gbps
Uplink PortsModular (40G/100G via NM)
Console Ports1 x RJ-45, 1 x USB Type-A, 1 x USB mini-B
Power over Ethernet
PoE StandardNo PoE
Prestaties
Switching Capacity480 Gbps
Forwarding Rate357.0 Mpps
Forwarding Bandwidth1000 Gbps
MAC Address Table32k
Jumbo Frame9216 bytes
VLAN Support4094
Max Active VLANs4094
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, BGP-EVPN, EIGRP, IS-IS, PIM, IGMP, HSRP, VRRP, VXLAN, EVPN, MPLS, VRF-Lite, GRE
Stacking & High Availability
Stacking SupportStackWise Virtual (SVL)
System Hardware
CPUx86 Intel quad-core
RAM16384 MB
Flash Memory16384 MB
Power & Environment
Power Consumption (max)950 W
Power SupplyDual hot-swap 950WAC
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 °C to +45 °C
Physical
Dimensions (W x D x H)445 x 597 x 44 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI, NETCONF, RESTCONF, gNMI
