OCJ Duplex Singlemode SC/APC to SC/APC G.657.A1 LSZH Fiber Patch Cable 1m
SKU: CS-FPS-292 | MPN: 2055025
Deskundig advies nodig?
Onze productspecialisten helpen u graag met specificaties, productkeuze of installatievragen.
Over CommScope OCJ Duplex Singlemode SC/APC to SC/APC G.657.A1 LSZH Fiber Patch Cable

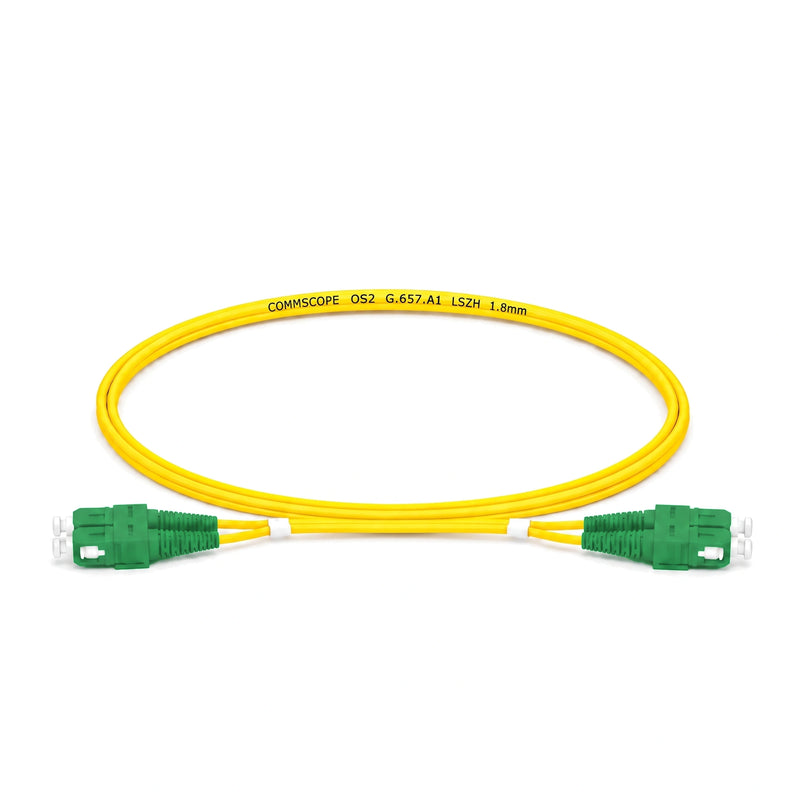

The CommScope OCJ duplex singlemode fiber patch cable is designed for reliable optical connectivity in telecom, enterprise and data centre environments. It contains two bend-insensitive G.657.A1 TeraSPEED® singlemode fibers and is terminated with two SC/APC connectors at each end.
CommScope specifies a maximum insertion loss of 0.5 dB per connector and a minimum return loss of 60 dB. The cable provides standard C grade optical performance and features a compact 1.8 mm construction with a yellow Low Smoke Zero Halogen (LSZH) jacket.
Available in 1, 2, 3, 5, 10 and 20 metre lengths, making it suitable for connections between compatible fiber patch panels, enclosures, distribution frames and optical network equipment. Both connected interfaces must support SC/APC connectors.
Specificaties
Algemene informatie
Kabelconstructie
Connector & Interface
Prestaties
Omgeving & conformiteit
Certificeringen
Voldoet aan strenge internationale veiligheids- en kwaliteitsnormen.
