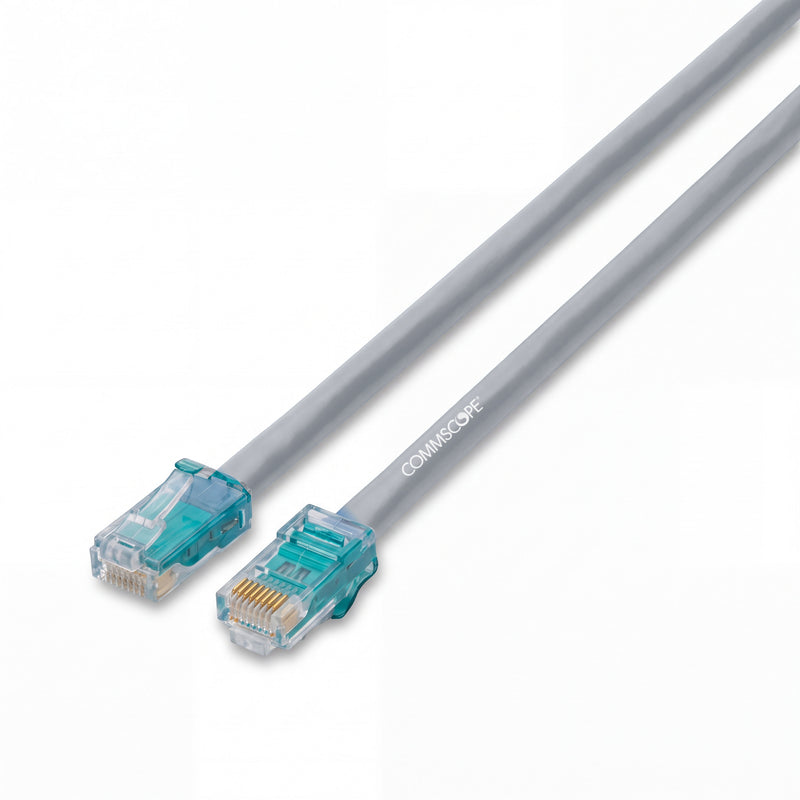

GigaSPEED X10D® 360GS10E Solid Modular Patch Cord LSZH 0.25m Grey
SKU: CS-CP-425 | MPN: CPCSSZ2 | EAN: 47799110
Unit price excl. VAT
Aanbieding
Uitverkocht
Normale prijs
11,81 EUR
Normale prijs
Aanbiedingsprijs
11,81 EUR
Eenheidsprijs
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About CommScope GigaSPEED X10D® 360GS10E Solid Modular Patch Cord LSZH
GigaSPEED X10D® 360GS10E Massieve Low Smoke Zero Halogen (LSZH) Modulaire Patchkabel.
Specificaties
General Information
BrandCommScope
Manufacturer Part NumberCPCSSZ2
Cable Category (TIA/US)Cat6a
Class (ISO/EU)Class EA
Warranty1 year
Cable Construction
Construction4x2 (4 pairs)
Conductor FormSolid
Conductor MaterialBare copper
ShieldingU/UTP
Pair Count4
AWG24
Jacket MaterialLSZH
Jacket ColorGrey
Cable Diameter7.24 mm
Connector & Interface
Connector ARJ45 8(8)
Connector BRJ45 8(8)
Connector StandardIEC 60603-7-71 (Cat 6A UTP)
Wiring SchemeT568B
Contact PlatingGold over nickel
Boot TypeStandard
Mating Cycles≥ 3000
Plug Retention Force≥ 50 N
Prestaties
Bandwidth500 MHz
Data Rate10 Gbps
Impedance100 Ω
PoE Standard802.3bt (Type 4, 90 W)
PoE Wattage90 W
Electrical Specifications
Current Rating1.5 A
DC Resistance0.3 Ω
Contact Resistance20 mΩ
Insulation Resistance500 MΩ
Dielectric Withstand Voltage1000 Vac
Environment & Compliance
Operating Temperature-10 °C to +60 °C
Storage Temperature-40 °C to +70 °C
CPR EuroclassDca
Flammability RatingUL 94 V-0
Flame Propagation StandardIEC 60332-1-2, IEC 60332-3
Industry StandardsISO/IEC 11801, IEEE 802.3
Certifications
Meets strict international safety and quality standards.
