CommScope

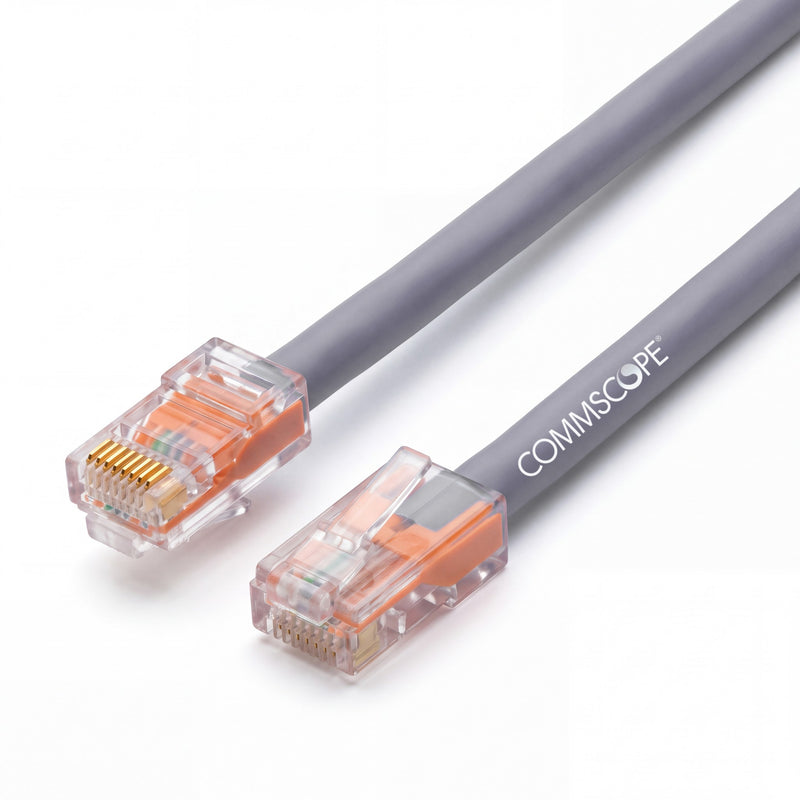

GigaSPEED XL® Cat 6 U/UTP Patch Cord LSZH 0.25m Grey
SKU: CS-CP-488 | MPN: CPC3392 | EAN: 46029638
Unit price excl. VAT
Aanbieding
Uitverkocht
Normale prijs
9,81 EUR
Normale prijs
Aanbiedingsprijs
9,81 EUR
Eenheidsprijs
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About CommScope GigaSPEED XL® Cat 6 U/UTP Patch Cord LSZH
GigaSPEED XL® Cat 6 Patchkabel, LSZH.
Specificaties
General Information
BrandCommScope
Manufacturer Part NumberCPC3392
Cable Category (TIA/US)Cat6
Class (ISO/EU)Class E
Warranty1 year
Cable Construction
Construction4x2 (4 pairs)
Conductor FormStranded
Conductor MaterialTinned copper
ShieldingU/UTP
Pair Count4
AWG24
Jacket MaterialLSZH
Jacket ColorGrey
Cable Diameter6.02 mm
Connector & Interface
Connector ARJ45 8(8)
Connector BRJ45 8(8)
Connector StandardIEC 60603-7-4 (Cat 6)
Wiring SchemeT568B
Contact PlatingGold over nickel
Boot TypeSnagless
Mating Cycles≥ 3000
Plug Retention Force≥ 50 N
Prestaties
Bandwidth250 MHz
Data Rate1 Gbps
Impedance100 Ω
PoE Standard802.3bt (Type 4, 90 W)
PoE Wattage90 W
Electrical Specifications
Current Rating1.5 A
DC Resistance0.3 Ω
Contact Resistance20 mΩ
Insulation Resistance500 MΩ
Dielectric Withstand Voltage1000 Vac
Environment & Compliance
Operating Temperature-10 °C to +60 °C
Storage Temperature-40 °C to +70 °C
CPR EuroclassEca
Flammability RatingUL 94 V-0
Flame Propagation StandardIEC 60332-3
Industry StandardsISO/IEC 11801, IEEE 802.3
Certifications
Meets strict international safety and quality standards.
